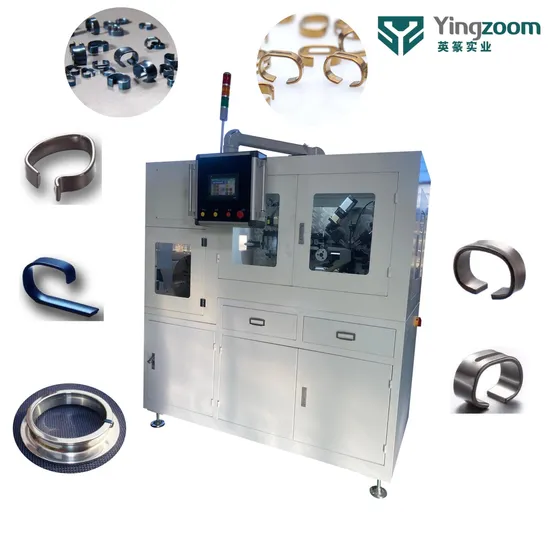

Ring Traveller Forming Machine /Steel Ring Cup

Product Description

Main Technical Parameter

Scope Of Application
Width	1~6mm
Thickness	0.3~1mm
Window	0.35~0.65mm(Depends on the thickness of the board)
Speed	240-300pcs/min
Opening Symmetry Accuracy	0.05mm
Flatness	0.05mm
High	0.05mm
Pass Rate	1000/2~5
Qualification Rate Of The Entire Production Line	>90% According to the entire production line

Technical Advantage
1.The shape consistency of the ring traveller is good, stable and reliable;
2.Single quality deviation ±0.2%;
3.The size deviation is ±0.10mm. The size deviation of long and short legs, high and short legs, and wrong legs can reach ±0.05mm;
4.The surface appearance has less burrs;
5.The window have an alarm function;
6.Alarm function for insufficient feeding;
7.Sheet plate alarm function;
8.Easy to operate, simple structure, reducing personnel training costs, easy for employees to operate and learn;
9.One machine can produce a variety of conventional and special-shaped specifications, with strong compatibility;
10.High qualification rate, low scrap rate, greatly reducing costs.
Machine dimension drawing
Factory Site Pictures

Grinding Products

Extended Products
FAQ
Q:Are you a factory or trading company ?
A:We are a factory specializing in manufacturing, R&D, and have our own foreign trade rights and production equipment.
Q:Could you please send me your best price?
A:Yes, we cherish every cooperative customer and work hard to facilitate transactions.
And before quoting,please kindly consult us and provide:
What part do you need to fine grind? Your requirements for accuracy.
If there are product drawings, it will be more helpful for us to provide you with a suitable equipment solution.
Q:When is your delivery time ?
A:90-110 days after 30%-50% deposit received.
Q:When is your payment term ?
A:Payment shall be 30%-50% deposit by T/T,balance 50%-70% paid by T/T,D/P after inspection but before shipment.
Q:Can you make machines based on customer's design ?
A:Yes,we can customized. According to your special request,we can design solution and provide service scheme.
Q:How to handle the installation and test for machine?
A:Our engineers are available to service overseas to install and train local staff.Specific arrangements will be explained clearly in each quotation.
Cooperative Partner
After-sales Service
Technical Support
1.Customised machine;
2.Customized layout drawings;
3.Commissioning and installation before delivery;
4.Overseas engineers to install and debug ,Training ;
5.Formula debugging;
6.Upgrading and transformation, make your equipment back to a better state and solve the problem of insufficient output;
7.24-hour online technical support and service
Spare Parts Service

1.A processing centre for Perishable parts, sent abroad in a second.
2.During the warranty period, we can provide replacement parts free of charge, except in the case of artificially damaged parts.
Maintenance
The seller guarantees the quality of the products for 12 months since the date of installation. During the warranty period, any problems/defaults happen on the hard parts of the machinery, the buyer will replace the parts at the seller's cost (Free). If the defaults are aroused by the defaulted operations, or the buyer needs the technical assistance for the processing problems, the buyer should be responsible for all the cost and their allowance.
Packing and Shipping
Usually shipping by sea, Packed in wooden crates, wooden pallets.
And before we pack, we will apply protective oil on the machine to reduce the contact between the machine and the air.

About Our Company--Yingzoom
Shanghai Yingzoom Industrial Co., LTD is a national high-tech enterprise that develops and produces high-precision grinding machine equipment and hub unit bearing testing and assembly equipment. Has a number of invention and utility model patents, and has reached long-term cooperation with many multinational companies and listed companies.
The main product series are high-precision CNC grinding machines, wheel hub bearing assembly lines, fully automatic bearing grinding machines, bearing processing equipment, etc.
The company regards customers as the core of the enterprise, quality as the life of the enterprise, and innovation as the enterprise goal, and serves global customers with complete equipment, strong technical force, and advanced testing and assembly technology. With continuous development and technological innovation, the equipment has reached the advanced level in the same industry at home and abroad.
