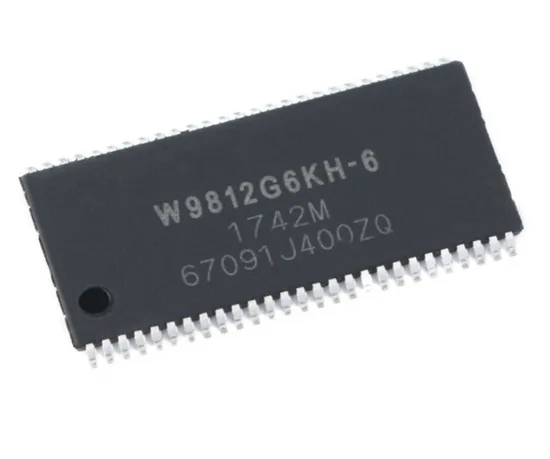

W9812G6KH-6 W9812G6KH-6I W9812G6KH DRAM Chip SDRAM 128MB IC

Product Description

description W9812G6KH-6 : DRAM Chip SDRAM 128M-Bit 8Mx16 3.3V 54-Pin TSOP-II
Mfr. Part#: W9812G6KH-6
Datasheet: (e-mail or chat us for PDF file)
ROHS Status:
Quality: 100% Original
Warranty: ONE YEAR

Type:	SDRAM
Memory Size:	128 Mbit
Data Bus Width:	16 bit
Maximum Clock Frequency:	166 MHz
Package / Case:	TSOP-54
Organization:	8 M x 16
Access Time:	6 ns
Supply Voltage - Min:	3 V
Supply Voltage - Max:	3.6 V
Minimum Operating Temperature:	0 C
Maximum Operating Temperature:	+ 70 C
Series:	W9812G6KH
Packaging:	Tray
Moisture Sensitive:	Yes
Mounting Style:	SMD/SMT
Product Type:	DRAM
Factory Pack Quantity:	108
Subcategory:	Memory & Data Storage
Supply Current - Max:	50 mA
Unit Weight:	1.304431 oz

W9812G6KH is a high-speed synchronous dynamic random access memory (SDRAM), organized as 2M words x 4 banks x 16 bits. W9812G6KH delivers a data bandwidth of up to 200M words per second. To fully comply with the personal computer industrial standard, W9812G6KH is sorted into the following speed grades: -5, -5I, -5J, -6, -6I, -6J and -75. The -5/-5I grade parts are compliant to the 200MHz/CL3 specification (The -5I industrial grade which is guaranteed to support -40°C ≤ TA ≤ 85°C, the -5J industrial plus grade which is guaranteed to support -40°C ≤ TA ≤ 105°C). The -6/-6I grade parts are compliant to the 166MHz/CL3 specification (The -6I industrial grade which is guaranteed to support -40°C ≤ TA ≤ 85°C, the -6J industrial plus grade which is guaranteed to support -40°C ≤ TA ≤ 105°C). The -75 grade parts is compliant to the 133MHz/CL3 specification. Accesses to the SDRAM are burst oriented. Consecutive memory location in one page can be accessed at a burst length of 1, 2, 4, 8 or full page when a bank and row is selected by an ACTIVE command. Column addresses are automatically generated by the SDRAM internal counter in burst operation. Random column read is also possible by providing its address at each clock cycle. The multiple bank nature enables interleaving among internal banks to hide the precharging time. By having a programmable Mode Register, the system can change burst length, latency cycle, interleave or sequential burst to maximize its performance. W9812G6KH is ideal for main memory in high performance applications.
