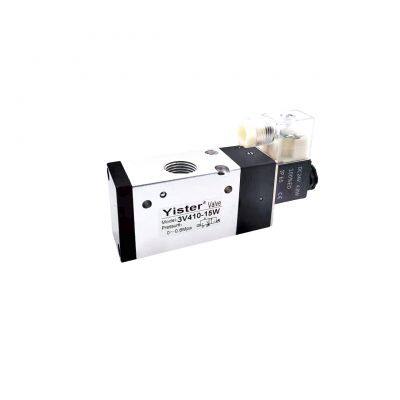

| Model | 3V410-15W | 3V420-15W | |
| Fluid | Air | ||
| Acting | external pilot | ||
| Original state | NC(Normally closed),NO(Normally open);Double solenoid :no NC/NO | ||
| Lubrication | No required | ||
| Orifice size | 25.0mm² | 30.0mm² | |
| Port size | In=out=G1/2'' | ||
| Protective class | IP65 | ||
| Pressure range | 0.15-0.8MPa(21~114psi) | ||
| Proof pressure | 1.2MPa(215psi) | ||
| Material of body | Aluminum Alloy | ||
| Temperature | -5℃~60℃ | ||
| Response speed | <0.05s | ||
