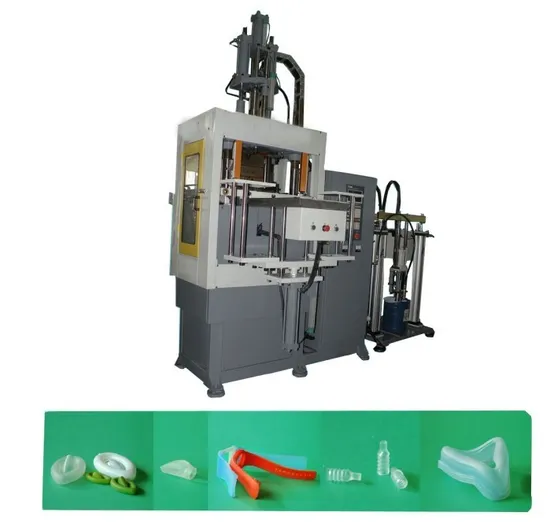

Vertical LSR (Liquid Silicon Rubber) Injection Machine

Product Description

Vertical LSR (Liquid Silicon Rubber) Injection Machine
CLAMPING FORCE:35 - 200 Ton
INJECTION CAPACITY: 0.5 - 50 oz MAIN FEATURES:
.Vertical clamping,vertical injection.
.Space-saving compact design makes the product take-out
more convenient.
.Suitable for multi-purpose injection molding and it works
partcularly well in insert molding.
Specifications:
Product alias: silicone injection molding machine
Product use: the silicone molding
Screw diameter: 40 (mm)
The screw rotation speed: 0-300 (RPM)
Shoot rubber pressure: 146 (Mpa)
injection capacity: 176 (cubic centimeter)
The motor power: 15 (kw)
Clamping force: 833 (kN)
Mould stroke: 420 (mm)
Weight: 3700 (kg)
Dimension: 2090 * 1700 * 2730 (mm)
Product type: brand new
Processing custom:

Horizontal type		MWK-L6068	MWK-L6068-2	MWK-L4048	MWK-L4048-2	MWK-L5058	MWK-L5058-2
injection unit	shot volume	350g	350g	120g	120g	250g	250g
	injection rate	30g/s	30g/s	30g/s	30g/s	30g/s	30g/s
	injection pressure	19.6T	19.6T	19.6T	19.6T	19.6T	19.6T
clamping unit	clamping force	150T	130T	95T	95T	120T	95T
	opening stroke	150-550mm	150-550mm	150-550mm	150-550mm	150-550mm	150-550mm
	tie-bars space	600*680mm	600*680mm	400*480mm	400*480mm	500*580mm	500*580mm
	ejection force	7.8T	7.8T	7.8T	7.8T	7.8T	7.8T
	ejection stroke	150mm	150mm	150mm	150mm	150mm	150mm
other	pump pressure	21Mpa	21Mpa	21Mpa	21Mpa	21Mpa	21Mpa
	motor power	7.5kw	7.5kw	7.5kw	7.5kw	7.5kw	7.5kw
	heater power	9kw	9kw	9kw	9kw	9kw	9kw
	mould orientation ring diameter	φ100mm	φ100mm	φ100mm	φ100mm	φ100mm	φ100mm
	machine weight	4.5T	4.7T	2.7T	2.8T	3.8T	2.9T
	machine dimension	1.9*2.3*3.1m	2.1*1.8*3.1m	1.5*1.9*3.0m	1.7*1.5*3.0m	1.7*2.1*3.0m	1.9*1.6*3.0m

Ningbo Mengkwa Machinery Co.,Ltd is an experienced and professional manufacturer of plastic extruder and extrusion lines for years. We can produce various equipments, including plastic pipe extrusion lines, plastic profile extrusion lines, plastic sheet/plate extrusion lines and also some recycling and pelletizing machines etc. According to different requirement s of each customer, our engineers will provide most professional mechanical design and manufacturing, and the complete processing technology to meet their special application requirements.
If you want to know any information about us and machine or equipment, please contact with us at any time .
Ningbo Mengkwa Machinery Co. Ltd
Ningbo, China


web: mengkwa.en.made-in-china.com
mengkwa.en.made-in-china.com

After-sale service
1. 24 hours technical support by email, call, video.
2. Warranty for one year after 12 months of shipment
3. Installation and commissioning engineer will provide the tech long machine, and machine operation of the buyer's personnel on-site training, troubleshooting and machine maintenance. The factory offers free installation training for a week the company engineers, beyond a week, the salaries borne by the customer engineer the factory.
Terms of payment
1.after receiving the deposit 40%, our company will arrange production;
2.After the customer check and accept compression machine, before delivery, customer need to pay off the balance payment;

---
