Ready Stock 2/3 Ton Electric Hydraulic Lift Container Unloading Platform

US$1,600.00-3,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
YDDCQ
Application
Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane
Lift Mechanism
Lift Chain
Moves
Moving
Driven Type
Hydraulic
Running Mode
Moving
Certification
CE, ISO 9001
Maximum Height
1700mm
Minimum Height
8mm
Table Size
Customizable
Packaging
Wooden Box
Transport Package
Wooden Box
Specification
2T/3T
Trademark
Xinguanyun
Origin
China
HS Code
8428909090
Production Capacity
5000

Packaging & Delivery

Package Size
250.00cm * 200.00cm * 235.00cm
Package Gross Weight
850.000kg

Product Description

Model Table size Lifting height load Panel material power dead weight
SJYD-2T 1600*2000mm 1700mm 2000KG 4.5mmPatterned steel plate 2.2kw/3kw 718KG
2000*2000mm 1700mm 2000KG 4.5mmPatterned steel plate 2.2kw/3kw 800KG
SJYD-3T 1600*2000mm 1700mm 3000KG 4.5mmPatterned steel plate 4kw 988KG
2000*2000mm 1700mm 3000KG 4.5mmPatterned steel plate 4kw 1060KG
1600*2600mm 1700mm 3000KG 4.5mmPatterned steel plate 4kw 1108KG
2000*2600mm 1700mm 3000KG 4.5mmPatterned steel plate 4kw 1200KG

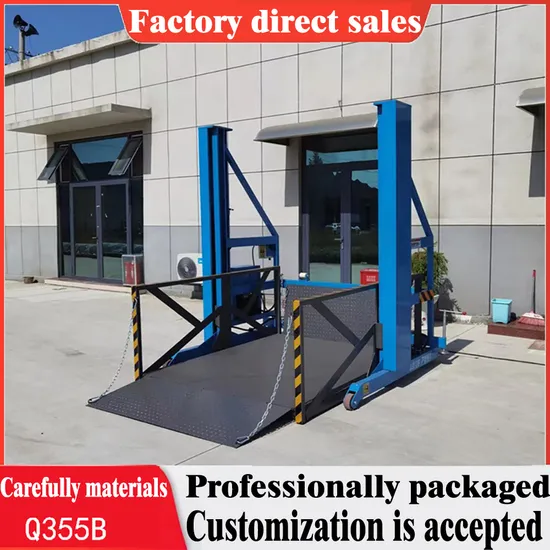

The mobile loading and unloading platform adopts high-strength guide rail structure, hydraulic lifting, convenient movement, no need for pits, and can be used with manual or electric pallet trucks to achieve one-person rapid loading and unloading operations, which is a safe and efficient modern loading and unloading platform.
It is controlled by 24V safe voltage with wireless remote control. Industrial waterproof aviation plug (degree of protection: IP44). It is equipped with a power failure emergency descending device and a travel limit device Product Description

Detailed Photos

Mobile loading and unloading lifting platform 2t 3t Container Loading lifting tableMobile loading and unloading lifting platform 2t 3t Container Loading lifting tableMobile loading and unloading lifting platform 2t 3t Container Loading lifting tableMobile loading and unloading lifting platform 2t 3t Container Loading lifting tableMobile loading and unloading lifting platform 2t 3t Container Loading lifting table
