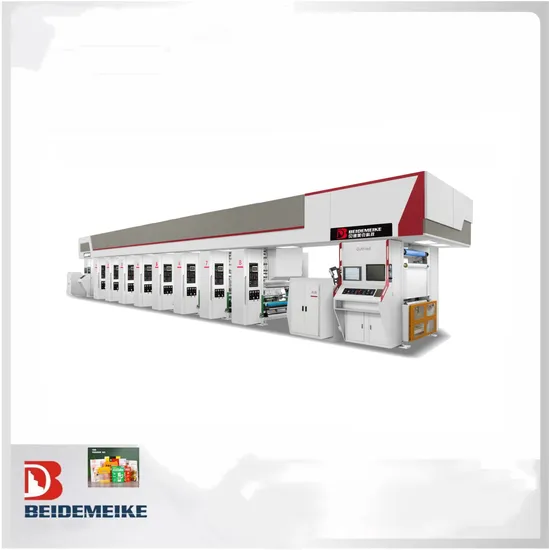

High Speed Rotogravure Printing Press Machine for Film Paper Label Production

US$5,000.00-340,000.00 1 Set (MOQ)

Basic Info.

Model NO.
BMAY-1250A
Condition
NEW
System Supported
Windowsxp64
After-Sales Service Provided
Engineers Available to Service Machinery Overseas
Printing Interface
USB3.0
Applicable Material
Stickers, Textile, Film, Paper, Plastic
Arrangement Position of Color Groups
Combined Gravure Press
Usage
Flexible Packaging Gravure Printing Machine
Feeding Mode
Web Gravure Printing Machine
Automatic Grade
Automatic
Color & Page
Multi-Colour Printing Press
Structure
Rotary Type Printing Machine
Printing Sequence
From Left to Right
Printing Couple
8
Maximum Mechanical Speed
350m/Min
Maximum Printing Speed
350m/Min
Printing Width
Less Than 1250mm
Standard Width of Set Flush
Min.550mm~Max.1250mm
Printing Form Scope
Min.320mm~Max.900mm
Imposition Mode
Gas-Cap Imposition
Color Cell Center Cabinet
1.3m
Maximum Unwinding Diameter
600mm
Maximum Winding Diameter
600mm
Winding and Unwinding Structure
Separate
Tension Range
3~30kg
Air Volume of Blower
4000m3/H (50Hz)
Total Power
235kw
Transport Package
Stretch Film Packing or Customized
Specification
Approx20000(l)*4000(w)*3800(h)mm
Trademark
Beide Meike
Origin
China
HS Code
8443170090
Production Capacity
200sets

Packaging & Delivery

Package Size
20000.00cm * 4000.00cm * 3800.00cm
Package Gross Weight
40000.000kg

Product Description


Introduction
The Electronic Shaft-Driving Gravure Press boasts numerous advantages, including low energy consumption, minimal loss, straightforward operation, and advanced intelligent features. This machine is perfectly suited for both large-batch oversupplied products and small-batch product groups, making it ideal for long-term production. It seamlessly integrates flexible packaging orders with personnel configurations, optimizing and enhancing printing operations. This results in greater efficiency and convenience when switching between different orders. The low-voltage electrical and control systems feature internationally renowned brands such as Yaskawa, SMC and others, which ensures high reliability and durability for extended use of this gravure printing machine.
Equipment Composition
The equipment primarily consists of the following components: Feeding, unwinding and
cutting, unwinding traction, printing, drying, winding traction, winding and cutting,
and discharging.
Function Description
Through the seamless integration of these components, the machine performs high-quality
color printing on materials specified in contracts, fulfilling its intended printing functions.
Product Parameters
Model BMAY-1250A
Max. speed 400m/min
Max. width of web 1250mm
Max.unwind diameter Ø600mm
Max.rewind diameter Ø600mm
Inside Diameter ofroll core 3''
Diameter of printing cylinder Ø120-360mm
Accuracy of computer registration ±0.1mm
Total power Approx 235kw
Machine dimension Approx18500(l)*3400(w)*3400(h)mm
Machine weight Approx.40000kg
Main Features Equipment Operating Conditions 1. Environmental Conditions
a. Installation Altitude ≤1000m b. Ambient Temperature: 5~40ºC
c. Control Cabinet Temperature 10~40ºC
d. Air Humidity: 50~70% 2. Power Requirements a. Main Power Supply: Three-phase, Five-wire System, AC380V b. Voltage Fluctuation: Maximum -10/±5%
c. Frequency: 50HZ (Chinese Standard)
3. Cooling Water Requirements
a. Pressure: 1.5-2.5bar, Temperature: 20~25ºC b. Filtration: Less than 20μ
c. Hardness (CaCO3): 2.5~4mg/L d. pH Level: 7~8.5
4. Compressed Air Specifications
a. Quality: Oil-free, Dry, and Filtered
b. Filtration Grade: Less than 20μ
c. Pressure: 7bar±1bar
d. Condensation Point: 2ºC Applications
Material Min. Max.
BOPP 12μm 60μm
PET 10μm 60μm
BOPA 15μm 60μm
PE 35μm 100μm
Paper 30g/m2 120g/m2
LDPE 35μm 100μm

Please be advised that the data provided above pertains to our standard machine specifications and is intended solely for reference. For tailored adjustments, material thickness variations can be customized to accommodate increases in the power of the machine.
workshop
Packaging & Shipping
Whenever our customers have a need, our dedicated factory workers tirelessly pack machines, often working late into the night to ensure timely delivery. The equipment loaded on the vehicle is a testament to our commitment to excellence and punctuality.This advanced machine is meticulously prepared and ready to embark on its journey to Vietnam, ensuring it arrives in perfect condition and on schedule. Exhibition show
Company Profile Jiangxi Beide Meike Technology Machinery Co., Ltd is a premier, production-oriented enterprise specializing in the cutting-edge development and manufacturing of soft packaging machinery. Our company proudly presents the world's only high-efficiency, high-performance, multi-purpose, solvent-less composite equipment, featuring an integratedRubber Mixer, meticulously crafted to meet diverse demands in the Solvent-less Composite Field of Soft Packaging. Our market share has experienced a remarkable annual growth rate of 50%, penetrating major packaging hubs both domestically and internationally. With relentless dedication and continuous innovation, our company has successfully developed a groundbreakingsolvent-less composite equipment boasting high-speed, multifunctional, multi-layer capabilities. Following its initial market release and extensive customer feedback, it has been highly acclaimed in the industry for its outstanding cost-effectiveness and versatile functionality. We warmly invite both domestic and international customers to visit our facilities for inspections and engage in technical exchanges!
Partnering directly with the source manufacturer is your optimal choice!
1.Offering more competitive pricing: As a direct manufacturer, we eliminate the need for intermediaries or distributors, passing the savings directly to our customers.
2.Providing expert technical support: Leveraging our extensive technical knowledge and professional teams, we offer superior technical support and tailored solutions.
3.Customization services: Direct collaboration with clients enables us to customize products to meet specific customer requirements.
4. Faster product delivery: Our advanced manufacturing capabilities allow us to deliver products swiftly, significantly reducing wait times.
5. Superior quality products: With stringent quality control systems and refined production processes, we ensure the highest quality products.
6. Building long-term strategic partnerships: We are committed to forming lasting strategic partnerships with our clients, consistently responding to their needs and feedback to provide exceptional service.
