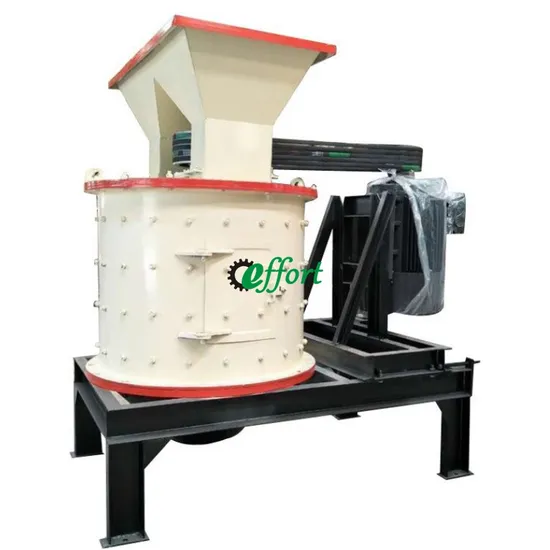

Good Performance Sand Making Vertical Combination Crusher, Vertical Sand Crusher with Final Product 0-5mm

Product Description

Good Performance Sand Making Vertical Combination Crusher, Vertical Sand Crusher With Final Product 0-5mm
Introduction of New Products Combination Crusher, Vertical Combination Crusher
Vertical compound crusher can be classified into glass crusher, gypsum crusher machine, small stone crusher, vertical crusher and Compound crusher. Compound crusher is widely used to crush shale, glass, ceramics, bluestone, metal ores, cement raw meal, clinker in building sand, iron ore, sandstone, gypsum, coal gangue, coal, etc. Especially in sand making and metal ore stone, compound crusher is most widely used crushing machine.
This vertical compound crusher enjoys the merits of big reduction ratio, low energy consumption, smooth operation, simple structure, easy maintenance, and other characteristics, which is truly a new type of crushing equipment that are of multi-purpose, high efficiency and low cost. compound crusher (composite broken) crushing ratio greater degree, the maximum reduction ratio can reach the particle size can be adjusted, without plate hammer, liner wear impact; without sieve set, crushing high moisture content, clay content when large material clogging; adopt a flexible adjustment mechanism into the non-broken material can be automatically discharged, will not cause damage to the equipment; bearing horizontal arrangement, long life, high temperature materials can be broken (such as cement clinker); this machine rotor body unique structure, crushing the material, the rotor body almost no wear and tear; after the cavity is provided with a screw or hydraulic opening mechanism, not from the master device, you can easily replace wearing parts.
Work Principle of New Products Combination Crusher, Composite Crusher
When vertical compound crusher works, the rotor which is fixed on the main bearing will rotate in high speed driven by the motor. Bulk materials are fed into the material-throwing plate from the feeding hopper. After the impact of the material-throwing plate in high speed, under the action of centrifugal force, the materials are cast into the impact plate to be crushed. Under the gravity, the materials on the slop of the impact plate are crushed again by the secondary hammer. After being crushed by multi-layer hammers, direct discharge from the bottom to form a closed loop several times, the materials are discharged at the end, controlled by the screening equipment to achieve the request.
Application of New Products Combination Crusher, Composite Crusher
Application field: Widely used in all kinds of ores, cement, refractory materials, bauxite clinker, carborundum, glass raw materials such as hard, hard materials, finely in the field.
The Vertical compound crusher is widely used in various ores, cement, refractories, bauxite clinker, carborundum, glass raw materials high-hard, special hard material, the crushing fields. In the mechanism building sand, stone and various metallurgical slag crushing is widely used, and compared to other types of crushers yield high efficiency.
Features of New Products Combination Crusher, Composite Crusher
1. Compound cone crusher uses the best combination of crushing frequencies and eccentricity, so it can crush materials into finer particles
2. The crushing capacity of the compound cone crusher is higher compared to similar models
3. The machine can enhance the role of the lamination of material smashing, and effectively improve the three-dimensional shape of crushed material
4. The pneumatic and hydraulic insurance, hydraulic lock, hydraulic adjustment and hydraulic cavities cleaning make the operation easier to automate
5. Under normal conditions of use, the device adopts optimized design, allows trouble-free run rate more than 95%
6. The compound cone crusher is divided into standard type and short-head type
7. Short-head type compound cone crusher is conducive to the production of fine-grade materials, while standard type compound cone crusher is commonly used for medium crushing and fine crushing.
Parameters of New Products Combination Crusher, Composite Crusher

Model	Width of chain plate(mm)	Wheel Base (mm)	Speed (m/s)	Feeding size(mm)	Capacity (t/h)	Motor power (kw)	Dimension (mm)	Weight (t)
PFL100	1000	6000	0.01-0.1	≤500	80-160	11	86200*4960*1600	15
PFL 120	1200	11000	0.01-0.1	≤600	50-100	15	11463*5029*2860	23.5
PFL 125	1250	6000	0.014-0.8	≤800	45-150	11	8620*5240*1950	18.9
PFL 140	1400	16000	0.006-0.06	≤900	20-200	22	18310*6447*3020	45.9
PFL 150	1500	10500	0.006-0.06	≤700	61-610	22	12850*5595*1705	49.4
PFL 160	1600	6000	0.017-0.17	≤800	≤500	22	8354*6099*2100	25.5
PFL 180	1800	8000	0.022-0.046	≤800	30-320	37	10300*4295*3650	53
PFL 220	2200	10000	0.018-0.055	≤1500	220-680	45	12650*4495*3350	80.4
PFL 160	1600	9000	0.01-0.07	≤1000	≤500	30	11250*4153*2890	50
PFL180	1800	8000	0.01-0.07	≤1000	≤500	37	10250*4353*2890	59
PFL200	2000	9800	0.01-0.07	≤1000	≤700	45	12000*4553*2890	82
PFL220	2200	10000	0.01-0.07	≤1000	≤800	45	12000*4753*2890	85
PFL230	2300	10000	0.01-0.07	≤1500	≤850	55	12000*4853*2890	86

---
