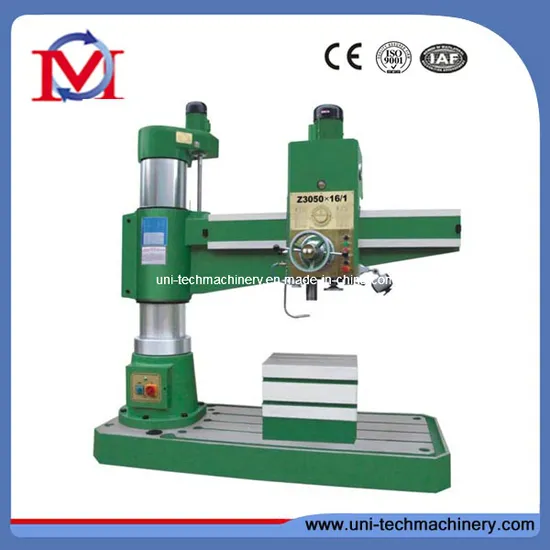

High Precision Radial Arm Drilling Machine (Z3050X16/1)

Product Description

Radial arm drilling machine tool (Z3050X16/1)
1. With wide range of speed and feed, with manual, power and fine feeds. The feed of machines are very easily engaged and disengaged at any time.
2. With safe and reliable feed safety machine, all parts easy operation and change.
3. All controls centralized on the head stock easy operation and change. Clamping for assemblies and speed change of spindle achiered by hydrandic power, cmle is sensitna owet nelile.
4. Main parts are made by machine center which import form KIA with high precision and efficiency, ensuring reliability and high quality.
5. Interating technology for casting parts is excellent, adopting casting equipment, ensuring high quality of materia for basic parts.
6. Spindle parts are made by special high quality steel heat treatment to be made by first class equipments, wnsuring high strength and durablity.
7. Main gears are machined by gear grinding, the machine ensuring high precision and low noise.
Standard accessories
* Box shape worktable
* Taper sleeve
* Tool releasing Wrench
* Drift
* Eyelet bolts
Special accessories
* Quick instead chuck
* Tapping chuck
* Grease gun

Model CODE NO.	Z3040X16/1	Z3050X16/1
Max.Drilling capacity (mm)	40	50
Distance spindle axis to column generating line (mm)	350-1600	350-1600
Diameter of column (mm)	350	350
Spindle taper	MT4	MT5
Spindle travel (mm)	315	315
Spindle speeds range (r/min)	25-2000	25-2000
Spindle speeds series	16	16
Range of Spindle feeds (r/min)	0.04-3.2	0.04-3.2
Spindle feeds	16	16
Max.Distance spindle nose to working surface of base (mm)	350-1250	320-1220
Dimension of worktable (mm)	630×500×500	630×500×500
Dimension of base (mm)	2400×1000×200	2400×1000×200
Overall Size (mm)	2500×1060×2650	2500×1060×2650
Power of Main motor (KW)	3	4
G.W/N.W (kg)	4500/3500	4300/3500
Packing dimension (cm)	270×112×258	270×112×258

---
