Marine Steel Anchor Various Type Anchor for Ship

Product Description

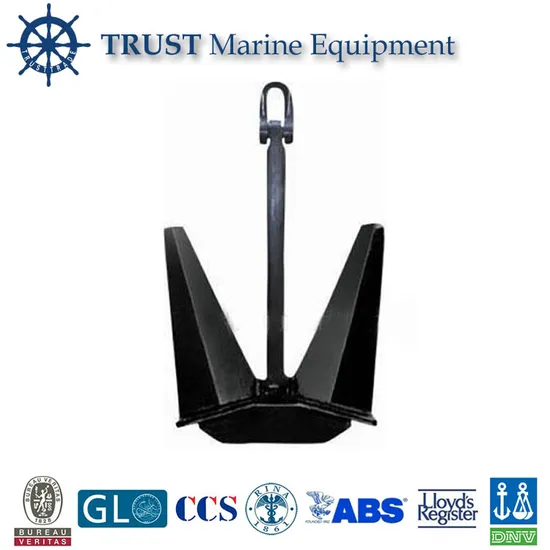

Marine Steel Anchor Various Type Anchor for Ship
Product Description
The anchor is the most commonly used conventional shackles ship anchor.
The anchor can be supplied with certificates from the major class society.
Available in sizes from 16 kg to 30 tons.

Technical Specification:
Material: Steel
Weight: 16KGS to 30000KGS
Class Certificate: LR, ABS, BV, GL, DNV, KR, NK, IRS and CCS

Nominal Weight	Size(mm)
(KG)	A	B	C	D	E	F
160	746	758	290	486	276	818
180	776	787	301	505	287	850
225	836	848	325	544	309	915
270	888	902	342	573	326	965
300	920	933	357	598	340	1008
360	978	993	380	637	362	1072
400	996	1010	386	648	374	1090
490	1086	1103	422	707	402	1190
565	1136	1153	425	740	420	1245
582	1160	1180	450	755	428	1270
675	1205	1224	468	785	446	1322
765	1257	1276	488	818	465	1378
855	1286	1306	500	841	480	1411
1000	1360	1380	528	885	503	1480
1080	1400	1420	542	915	520	1530
1130	1410	1430	547	917	521	1544
1195	1458	1479	566	949	540	1597
1305	1486	1509	579	973	556	1634
1440	1535	1560	596	1001	578	1683
1575	1584	1608	615	1032	596	1735
1710	1628	1651	632	1060	612	1782
1845	1670	1695	648	1084	628	1828
1980	1704	1731	667	1119	638	1880
2140	1754	1768	676	1135	655	1908
2295	1795	1822	697	1169	675	1966
2475	1741	1868	715	1199	692	2016
2665	1886	1912	732	1228	708	2206
2750	1907	1930	738	1238	715	2082
2835	1926	1955	748	1255	725	2110
3000	1972	2002	765	1285	742	2160
3240	2014	2044	782	1311	757	2205
3445	2056	2087	798	1340	774	2258
3690	2100	2130	815	1367	790	2298
3940	2150	2182	834	1400	808	2354
4210	2198	2230	853	1431	826	2406
4500	2236	2271	870	1462	836	2454
4840	2302	2336	894	1499	865	2520
5175	2318	2355	914	1555	868	2596
5250	2366	2400	918	1540	890	2590
5515	2405	2440	933	1566	905	2634
5850	2453	2489	952	1598	922	2685

Delivery and Package
Delivery: 20-60 days for anchor after payment according to quantity.
Package: marine anchor will be packed by exporting standard package or as per customer's requirement

---
