Product Details
Product Description
Product Description

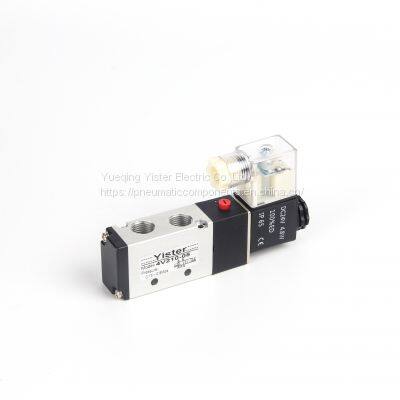

Single coil Airtac type 5/2 way 1/4" 4V210-08 normally closed air control Pneumatic solenoid valve
Order code
Symbol for 4V210 pneumatic solenoid valve
Technical parameter
Model
| 4V210-M5
| 4V220-M5
| 4V230C-M5
| 4V230E-M5
| 4V230P-M5
| 4V210-06
| 4V220-06
| 4V230C-06
| 4V230E-06
| 4V230P-06
|
Fluid
| Air solenoid valve
|
Acting
| Internal pilot air control valve
|
Valve type
| 5/2 way
| 5/3 way
| 5/2 way
| 5/3 way
|
Orifice size
| 5.5mm2
| 5mm2
| 12mm2
| 9mm2
|
Lubrication
| No required
|
Port size
| In=out=M5
| In=out=G1/8''
|
Protective class
| IP65
|
Pressure range
| 0.15-0.8MPa(21~1145Psi)
|
Proof pressure
| 1.2MPa(170psi)
|
Material of body
| Aluminum Alloy
|
Temperature
| -5℃~60℃
|
Response speed
| <0.05s
|
Dimension for 4V210 4V310 4V410 Solenoid valve
About us
Yister pneumatic factory mainly produce pneumatic air solenoid valve, foot valve, mechanical valve, buffer, sliding switch, water valve, floating joint, standard cylinder, mini cylinder, thin cylinder, pneumatic finger, double Shaft cylinder, needle cylinder, magnetic switch, air source treatment parts, double, triple, air filter, pressure regulating valve, pressure reducing valve, manifold.
Shipping & Packing
Feature
* Airtac Type Air Pneumatic Control Solenoid valve 4V110,4V210,4V310,4V410
* Aluminum material Body width 18mm,22mm,27mm,34mm
* Pilot Operated,Inner Pilot type
* Life cycle 10000000 times
* Pipe joint and Namur joint type for option
* Din connector and outlead wire electricity connecting for selectable
* Metal Manual Override ensure stability when power failure or necessary functional motion
* High quality pilot armature ensure rapid and sensitive feedback when connect eletricity
* IP65 class Electromagnetic Induction Coil,low consumption,long service life
* Mature products,cost effectively
>>
