Innovative Auto Parts Injection Molding Equipment

Product Description

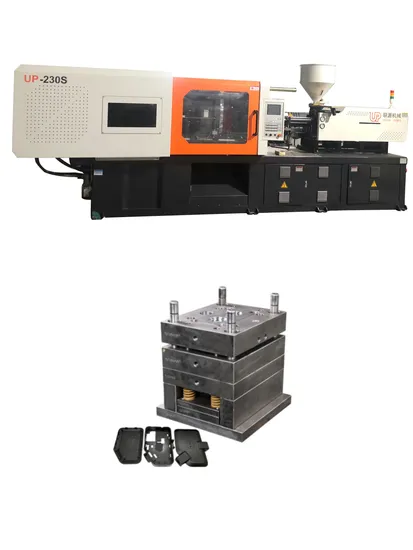

China Servo Injection Molding Machine
Introducing the advanced features of our injection molding machine from Ningbo Union Power Machinery Co., Ltd:
Modulus of Capacitance: Includes position, size, and maximum allowable modulus of capacitance and minimum closure thickness of the guide pillar.
Nozzle Parameters: Spherical diameter, aperture, outer diameter, maximum extension length, and positioning aperture of the nozzle.
Code Mold Parameters: Features code mold hole and slot size for precision molding.
Ejection Mechanism: Details the ejection point position, ejector rod diameter, force, and stroke for efficient mold ejection.
Mold Opening Stroke: Specifies the opening stroke and maximum distance for seamless operation.
Experience high-quality performance and precision with our standard injection molding machine. Upgrade your production capabilities with our reliable equipment.

Technical Parameters	Model UP-230T
Injection Unit	A	B	C
Screw diameter (mm)	50	55	60
Shot Volume (cm3)	461	558	664
Injection weight (g)	415	502	598
injection pressure (Mpa)	169	142	121
Screw speed (rmp)	155
Clamping Unit
Clamping force (KN)	2300
Open stroke (mm)	475
Max Mold height (mm)	550
Min Mold height (mm)	220
Space between tie bars(mm)	530*530
Ejector force (KN)	70
Ejector stroke (mm)	135
Others
Pump pressure (Mpa)	16
Motor/driving power (KW)	22(21.2)
Heating power (KW)	14.2
Machine dimension (M)	5.8*1.55*2.15
Machine weight (T)	6.3
Oiltank cubage (L)	350

---
