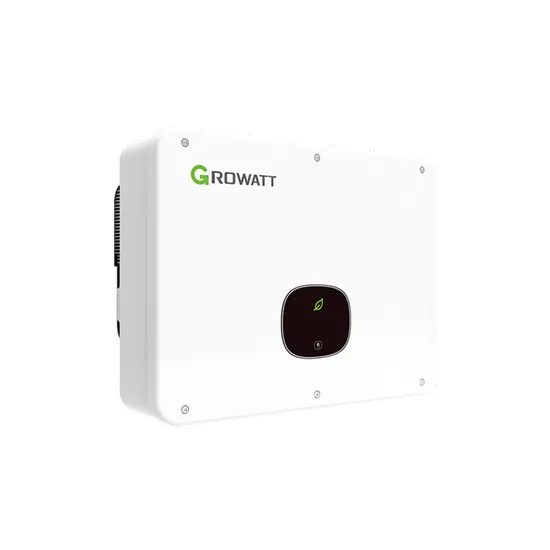

Growatt 15kw 20kw Dual MPPT Three Phase on Grid Inverter

US$699.00-1,999.00 1 Piece (MOQ)

Basic Info.

Model NO.

Growatt MID

Phase

Single

Output Power

>1000W

Certification

SAA, CE, ROHS, ISO9001, CCC

Brand

Growatt

Type

DC/AC Inverters

Power Source

Solar Power

Circuit Topologies

Half-Bridge Type

Nature of Wave String

Sine Wave Inverter

Rated Grid Voltage(V)

220V/380V, 230V/400V (340-440V)

Rated Grid Frequency(Hz)

50/60

Grid Frequency Range(Hz)

47-52 or 57-62

Operation Phase

Three

DC Reverse Polarity Protection

Yes

DC Switch Rating for Each MPPT

Yes

Output Over Current Protection

Yes

Output Over Voltage Protection-Varistor

Yes

Grid Monitoring

Yes

Transport Package

Carton Package

Specification

525/395/222mm

Trademark

Growatt

Origin

China

HS Code

8504403090

Production Capacity

1000pieces/Week

Product Description

Product Description
Smart Monitoring System
Technical specifications

Model	MID 15KTL3-X	MID 17KTL3-X	MID 20KTL3-X	MID 22KTL3-X	MID 25KTL3-X
Input data (DC)
Max. recommended PV power (for module STC)	22500W	25500W	30000W	33000W	37500W
Max. DC voltage	1100V
Start voltage	250V
MPP work voltage range	160V-1000V
Nominal voltage	580V
Max. input current per string	27A
Number of independent MPP trackers/strings per MPP tracker	2/2
Output data (AC)
Rated AC output power	15000W	17000W	20000W	22000W	25000W
Max. AC power	16600VA	18800VA	22000VA	24400VA	27700VA
Max. output current	24.2A	27.4A	31.9A	35.5A	40.2A
AC nominal voltage	220V/380V, 230V/400V (340-440V)
AC grid frequency range	50/60 Hz (45-55Hz/55-65 Hz)
THDI	<3%
AC connection	3W+N+PE
Efficiency
Max. efficiency	98.75%
Euro weighted efficiency	98.6%
MPPT efficiency	99.9%

Details Images & Packing

Model	Growatt MID 15K-25K
Modules per carton	1 piece

Note: The Above packing information contained in this web is subject to change without notice. We will offer wooden box packing with extra material and
labor costs if your order less than a pallet, we accept any customized packing as per your requests. Our Advantages
Our Factory
Our Projects
Our Exhibition
Go Solar
