Welding Torch CNC Plasma Power Source Tank-210 for CNC Plasma Cutting Machine

Product Description

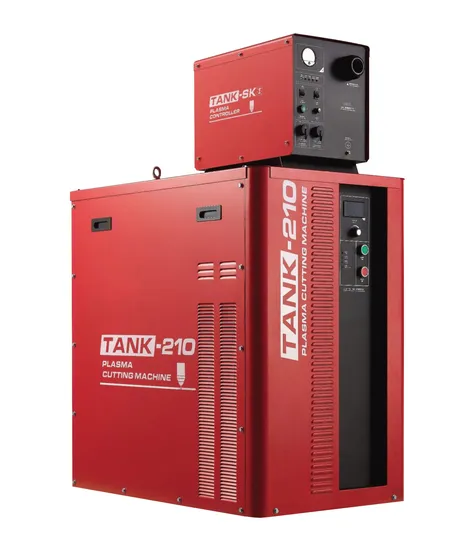

TANK 210

TANK series plasma cutting power sources, using the self-developed Smart Protection technology, can provide the torch and consumables more efficient and safer protection, and with the updated IGBT inverter technology, can provide much better stability and reliability. The unique structure of the separate control box from plasma power source is easy for operate. Assembled with HC series plasma torch, it can reach best cutting quality and efficiency, and bigly reduce the using cost.
Safety and Reliability:
Obtains the multi-protection for voltage, air pressure and water pressure as well as the self-protection for plasma torch which provide with safer and more reliable operation.
Energy-saving and High-productivity:
TANK series' productivity will be 12% higher than CUT series. Cutting Speed is increased by 30%, and consumable's life time is increased by 50%.
Labor-saving and Timesaving:
Smart Protection TM technology constantly monitors the consumption of electrode. When electrode is used out, the protection will start so as to avoid the burning of the torch. With Smart Protection TM technology, operators can free their hands, and do other jobs during cutting.
Application of Multi-functions:
TANK Series plasma power sources obtain the switch function between Dry Cutting and Water Mist Cutting, also both air and oxygen can be used for plasma cutting. Correspondent function can be used according to different material and cutting quality requirement.
Easy Installation and Easy Operation:
The separate structure of Control Box and Main Power Source enables the installation to be easy, and it only needs to install the the Control Box on the gantry CNC cutting machine and uses one control cable to communicate between the Control Box and the Main Power Source. The Control Box moves with the CNC cutting machine, it provides the convenience for worker's control and operation.

Input Parameter			Output Parameter
Input Voltage	3∅380AC 50Hz ±5%		Open Circuit Voltage		380VDC
Max. Input Current	70.2A		Output Current		35A-210A
Max Input Power	46.2KVA		Max. Output Voltage		200VDC
Cooling	Air, Grade F		Rated load		100% @ 37.3KW
Insulation	IPS21		Power Factor		0.93
TANK-210 Power Source		LxWxH: 897x558x984mm		N.W.: 115kg
Tank-SKI		LxWxH: 440x276x347mm		N.W.: 13kg
WRC-10E Cooler		LxWxH: 520x535x515mm		N.W.: 18kg, Excludes coolant

CUTTING PARAMETERS

ITEM	TANK 210
Maximum Arc Start Height:	15mm
Maximum Cutting Thickness:	55mm
Maximum Pierce Thickness:	35mm
Suggested Pierce Thickness:	32mm

M.S. Thickness	Cutting Speed(mm/min)
15mm	2300
20mm	1600
25mm	1000
32mm	640
40mm	400

Company Profile
Changzhou Greatech Co.,Ltd. established in 2013.
GREATECH focuses on welding & cutting, it has a professional team with more than 15 years of experience in this industry. The product of GREATECH covers various welding materials, welding machines, welding parts, plasma power sources, cutting machines and related hardware and tools.GREATECH has its own advanced technology. Our Plasma cutting machine EMC-130 is one of the biggest air cooling plasma cutting power source in the world. Its maximum cutting current is 130A (100% duty circle), it can work 24 hours continuously, the maximum pierce thickness reaches 25mm, and quality pierce thickness 20mm.Our CNC Plasma Water Mist Cutting power source, EMC-200M etc, with self-developed water mist cutting system and plasma cutting torch, have excellent performance in stainless steel and aluminum plate cutting, especially in aluminum plate cutting, our machine is one of the best in the world.Our Wecut Brand MIG, TIG, Plasma torch and spare parts as well as other welding & cutting related products, as a big variety and stable quality, has very good sales in overseasGREATECH focuses on welding and cutting, however, GREATECH is more than just welding & cutting.
Factory Show

Packing&Delivery
Company Exhibitions


FAQ

Q1: Can I get a samples to check the quality?A:Sure,we can supply samples. For regular goods, the sample cost is different from the amountyou want.For our new products, there's a MOQ of the samples.
Q2: Can I put my logo on the boxes/cartons?A: Yes, this can be made according to your requirements, but you should send us the trademarkauthorization letter.
Q3: How can you guarantee your products quality ?A: Our each torch must pass the following tests before packing: Insulation resistance test,High voltage test,Air/Water flow test, Air/Water seal test.If there are defective items, we usually credit to our customer or replace in the next shipment.
Q4: What's the order procedure?A: Firstly, we discuss the details together by e-mail or TM. Then we issue you a PI for yourconfirmation or Trade Assurance Order Payment Link. You will be requested to do the pre-paid fullpayment before we go into the production. After we get the payment, we start to process the order.It usually takes 5-15days if we don't have the items in stock.

---
