Product Description
Product Description

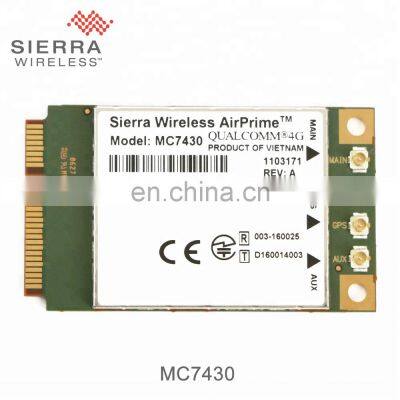

Description• Sierra AirPrime MC7430 PCI Express Mini Card is a compact, lightweight, wireless LTE-Advanced and UMTS based modem. It provides LTE-FDD, LTE-TDD, DC-HSPA+, TD-SCDMA, HSPA+, HSDPA, HSUPA, WCDMA, and GNSS connectivity for networking, and M2M applications over several radio frequency bands and supports 3G roaming.• Sierra MC7430 is a 4G-LTE cat 6 module (FDD & TDD), with a down link data rate of up to 300 Mbps, primarily for Asia Pacific (APAC). Support for Carrier Aggregation (CA) and MIMO. Fall back to 3G-HSPA+DC with Rx diversity. A GNSS receiver is integrated.Sierra Wireless AirPrime MC7430 Technical Specifications:• Form factor: PCIe Mini Card• Chipset: Qualcomm MDM9230• Air interface: 4G-LTE cat 6 (FDD & TDD) with CA (Carrier Aggregation) and MIMO, 3G-HSPA+DC with Rx Diversity, GNSS• Support 4G bands: B1 (2100), B3 (1800), B5 (850), B7 (2600), B8 (900), B18 (850), B19 (850), B21 (1500), B28 (700), B38 (2600/TDD), B39 (1900/TDD), B40 (2300/TDD), B41 (2500/TDD)• Support 3G bands: B1 (2100), B5 (850), B6 (800), B8 (900), B9 (1700), B19 (800), B39 (1900/TD-SCDMA)• Support LTE Peak Data rate: DL 300 Mbps, UL 50 Mbps• GNSS (GPS, Glonass, Beidou, Galileo*): Qualcomm• Regulatory: JRF/JPA, NCC, CE,GCF• Dimensions: 51 x 30 x 2.5 mm• Supply Voltage: 3.3 V nominal• Operating Temperature: -40°C to +85°C• Supported Carriers: docomo, Telstra(Planned: KDDI, Softbank)- Control, Software and Features• Control options: AT Commands, QMI SDK, MBIM• For optimum control the QMI SDK is recommended• Drivers: Android, Linux, Windows• Switch networks anytime with up to three different certified firmware variants on board.- Connectors• System connector: 52 position Mini PCIe• Antenna RF connector: 3x U.FL (Main RF, Aux RF, GPS with DC bias)- Interfaces• 1x USB 3.0 and USB 2.0 High Speed• 1x Wake host• 1x Wireless disable• 1x System RESET• 3x Antenna Control (muxed with GPIO 1-3)• 1x Dynamic Power Control, DPR (muxed with GPIO 4)• 4x GPIO (muxed with Antenna control or DPR)• 1x LED driver output• 2x SIM interface: 1.8/3V• 1x Digital Audio- Audio• Optional• Digital audio: PCM/I2S• 4G: VoLTE• 3G: Circuit Switched Fall Back (CSFB voice)Why Choose UsFAQQ1. What is the minimum order quantity for your products?A1. Minimum order quantity starts from ONE piece.Q2. What's the quality of your products?A2. We have professional QA/QC team to ensure the quality before shipment. We provide 1 year warranty for all the new and original products.Q3. Is this product free of shipping or free samples?A3. Regularly the sample and shipping cost will be at the buyer's account. But in specific case, we may take these costs. Please kindly check with us the details by email. Thank you.All Categories4G 5G ModuleGPS ReceiverGPS AntennaGSM/LTE/WiFi AntennaGSM/LTE+GPS AntennaGNSS/GPS Module2G/3G/4G ModemGPS TrackerRF Coaxial / ConnectorSIMCard HolderSensorIC
>>
