Wholesale Selling at a Low Price Heavy Metal Lathe Dy Serial Drills Drilling Machine

Product Description

Product Description
• A Electrical Clutch

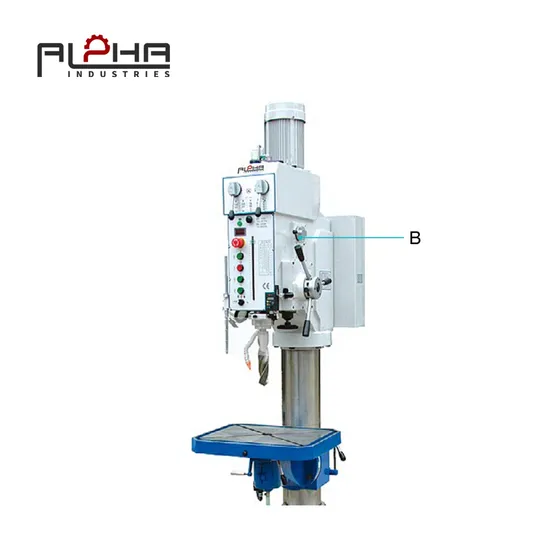

• B Mechanical Clutch


DY5030 come with
• Speed display
• Electro magnetism feed
• Oil pump lubrication
• Drilling,tapping
The other model come with
• Speed display
• Depth display
• up & down motor
• Electro magnetism feed
• Oil pump lubrication
Product Parameters

Model NO.	DY5030A/DY5030B DY5035A/DY5035B DY5040A/DY5040B DY5050A/DY5050B	Controlling Mode	Artificial
Automatic Grade	Manual	Precision	High Precision
Certification	CE, ISO 9001	Condition	New
Specification	960×590×2230mm	Trademark	Alpha industries
Origin	China	Production Capacity	100 Sets/Year

SPECIFICATIONS
Model No.	Unit	DY5030A/DY5030B	DY5035A/DY5035B	DY5040A/DY5040B	DY5050A/DY5050B
max.drilling diameter(steel)	mm	30	φ35	φ40	φ50
max.tapping diameter		M20	M22	M24	M30
max.milling cutterdiameter	mm		80	80	80
max. travelof spindle	mm	155	190	200	240
max.distance from spindle to generating line of column	mm	320	340	360	360
max.distance from spindle nose to surface of worktable	mm	625	665	590	590
max.distance from spindle nose to surface of base worktable	mm	1180	1195	1175	1170
max travel ofworktable and bracket/ manual(mechanical)	mm	560	570(450)	530(410)	530(410)
swivel angle of worktable		±45	±45	±45	±45
spindle taperbore		MT4	MT4	MT4	MT4
spindle speed steps		12	12	12	12
spindle speed range	r/min	125~3030	76~2065	52~1400	52~1400
spindle feed steps		3	3	4	4
spindle feed range	mm/r	0.1,0.2,0.3	0.1,0.2,0.3	0.1,0.2,0.3,0.4	0.1,0.2,0.3,0.4
dimension of worktable	mm	500×420	520×440	580×460	580×460
effective working area of worktable	mm	370×360	405×395	445×435	445×435
diameter of column	mm	120	140	φ160	φ180
power of motor	kW	1.0/1.2	1.5	2.2	3
mode of spindle feed		MechanicalElectromagnetism
packing dimension	mm	960×590×2230	1000×650×2220	1150×680×2250	1150×680×2250
N.W./G.W	kg	545/600	565/615	620/675	655/710

Company Profile
Certifications
Exhibition
Packaging & Shipping
FAQ
FAQs
Q1: How is the warranty?
A1: Warranty time is 15 months after BL date.
Q2: Can we visit your factory before order?
A2: Sure. All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3: Do you have a stock?
A3: We have stock for popular models, we produce according to order.
Q4: What's the MOQ?
A4: One set only.
Q5: How about your quality?
A5: We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 40 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6: Do you have professional engineers?
A6: Yes, we have professional engineers and designers. We can provide OEM services under Alpha brand.
Q7: Can you provide customized machines?
A7: Yes, we can design and manufacture according to your specific requirements.

---
