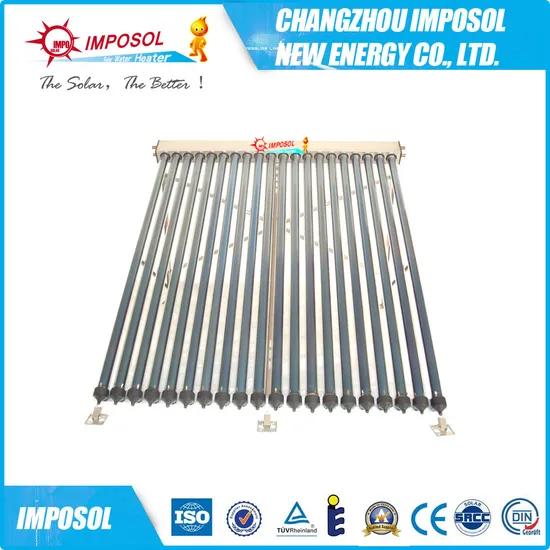

U Type Pipe Solar Collector with CE and Solarkeymark Certificate

Product Description

Main specifications

Inner manifold: copper header pipe(ASTM:C1100, DIN: ECu-58); potable water rated. Maximum pressure: 800kPa

Vacuum tube: borosilicate 3.3 twin wall all glass58*1800mm, high efficient coating, Vacuum:P<5*10-3 Pa

U-pipe: high purity "oxygen free" copper(ASTM:C10200, DIN: OF-Cu), heat conduction medium is antifreeze liquid

Outer manifold: 5005-H16 Aluminum with Anodized or Powder coated finish or 304 stainless steel

Insulation: high quality glass wool(K = 0.043W/mK), Average > 50mm

Frame: 202 stainless steel or 6005-T5 Aluminum Alloy

Connection options: 22mm OD copper(Europe)

Rubber components: HTV silicone rubber (UV stabilised)

Reflector: Aluminum

model	lighting area()	vacuum tube			supply water capacity(liter)	20GP/40HQ loading Qty(sets)
		(mm)	L(mm)	Qty(pcs)
IPRB D 581810	1.4	58	1800	10	85-100	118/288
IPRB D 581812	1.68	58	1800	12	100-120	112/272
IPRB D 581815	2.1	58	1800	15	125-150	93/226
IPRB D 581818	2.52	58	1800	18	150-180	85/211
IPRB D 581820	2.8	58	1800	20	170-200	81/201

Why Choose Us?

1.Our Product is economic and environmental;

2.Our Product is durable and has a long service life;

3.We have rich production experience.The quality of Product is reliable;

4.We have a perfect production process and strict quality control system;

5.We have perfect service system and will give you the best service.

6.Professional Production Line


OEM is welcomed.



Company introduction:


Changzhou Imposol New Energy Co., Ltd. Is top ten in china for exportation.with more and more customers from Europe,Australia,Africa and Asia joinning us.


With products' high performance and reasonable price backing us, With products'quality and company's credit supporting us,We believe that we are turning the world greener day by day-together!


As an OEM factory in china,We specialize in manufacturing various types of solar water heater,solar collectors and vacuum tubes.Our product range include;compact and split,low pressure and high pressure vacuum tube solar water heater;thermosyphon;heat pipe,Upipe and SCHMV tube solar collector;flat plate solar water heater and solar collector.


We have also designed and carried out some wonderful solar water projects for hospitals, schools,factories and familieS as well as our own design for new products.

---
