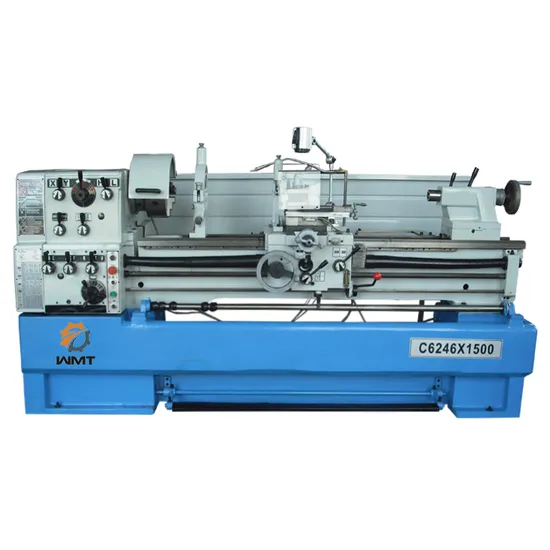

C6246 460mm China manual Metal lathe machine price for precision metal cutting

Product Description

Features:
The guide way and all gears in the headstock are hardened and precision ground.
The spindle system is high rigidity and accuracy.
The machines have powerful headstock gear train, high rotating accuracy and smooth running with low noise.
An overload safety device is provided on the apron.
Pedal or electromagnetic braking device.
Tolerance test certificate, test flow chart included
Specification:

Horizontal High Precision Lathe Machine	C6241×1000	C6241×1500	C6246×1000	C6246×1500
Max.swing over bed	Φ410mm(16")		Φ460mm(18")
Max.swing over cross slide	Φ224mm(8 13/16")		Φ274mm(10 3/4")
Max. swing over gap	Φ640mm(25 1/8")		Φ690mm(27 1/8")
Length of gap	155mm(6 1/8")
Max.length of workpiece	1000mm(40")/1500mm(60")
Width of bed	300mm(11 13/16")
Spindle nose	D1-6
Spindle bore	Φ58mm(2-1/4")
Taper of spindle bore	M.T.#6
Range of spindle speed	12changes25-2000r/min
Max.travel of compound rest	120mm(4 3/4")
Max.travel of cross slide	290mm(11 3/8")
Leadscrew pitch	metric 6mm
Max.section of tool	25mm×25mm(1×1")
Range of longitudinal feeds	42kinds 0.031-1.7mm/rev (0.0011"-0.0633"/rev)
Range of cross feeds	42kinds 0.014-0.784mm/rev (0.00033"-0.01837"/rev)
Metric threads range	41kinds 0.1-14mm
Inch threads range	60kinds 2-112 T.P.I.
Diametrical pitches range	50kinds 4-112D.P.
Module piches rang	34kinds 0.1-7 M.P.
Dia. of tailstock sleeve	60mm(2 5/16")
Travel of tailstock sleeve	120mm(4 3/4")
Morse taper of tailstock sleeve	M.T.#4
Power of main motor	4kw(5.4HP),optional 5.5kw(7.5HP)3PH
Power of coolant pump	40w

Standard accessories:
3-jaw chuck
4-jaw chuck
Steady rest
Follow rest
Foot plate
Optional accessories:
DRO
Quick change toolpost
Chuck protection
Leading screw guard
Toolpost protection
Guarantee Terms:
Complete service by free of charge within 13 months after B/L date Technical service will be given forever at any time. Any questions during operation, can contact us freely by email, or contact on line by Skype, WhatsApp, etc. Also can talk face to face during fairs. You will get response within 20 hours.

---
