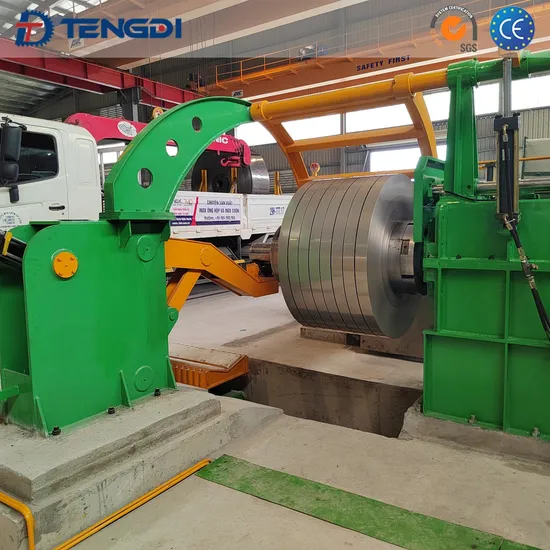

Metal Steel Sheet Slitting Machine for Steel Coil

Product Description

Are you looking for a high-quality slitter with excellent performance?
Tengdi Machinery is an excellent slitting machinery manufacturer. Our slitting production line has the characteristics of high automation, good leveling quality, high shearing precision, stable and reliable performance, convenient operation and maintenance, etc., which can realize the smooth completion of each process.One-time feeding of the coil can realize the smooth completion of each process, effectively reduce the labor intensity of workers, and has a high cost performance. It is a high-performance product integrating machinery, electricity and hydraulics. Choose tengdi, you will get the best quality solutions and services.
Quick Details

Material	SS,CR,HR,GI,AL,Copper,Special steel etc.	Coil ID	Φ508/610
Coil width	600-1700mm	Coil OD	≤Φ1500
Coil max weight	25T	Width of slits	≥20
Power	230kw	Slit Nos	≤16
Speed	120m/min	Width accuracy	≤±0.05
Thickness	0.4-3.0mm	Floor space	23*8.5m

Product Parameters

Model	Coil width (mm)	Coil max weight (T)	Power (kw)	Speed (m/min)	Thickness (mm)	Floor space (m)
2.0*650	150-650	6	96	180	0.2-2.0	11*4
2.0*850	200-850	10	96	180	0.2-2.0	11*4
2.0*1000	300-1000	15	120	180	0.2-2.0	11*5
2.0*1250	500-1250	15	160	180	0.15-2.0	12*6
2.0*1600	500-1600	20	240	220	0.2-2.0	22*7
3.0*650	200-650	15	180	150	0.2-2.0	22*7
3.0*1250	500-1250	15	205	180	0.3-2.75	22*6.5
3.0*1600	600-1600	20	230	120	0.4-3.0	23*8.5
4.0*1600	800-1600	25	220	120	0.5-4.0	25*7.5
6.0*800	200-800	15	220	60	1.0-6.0	15*5.5
6.0*1600	800-1600	25	220	50	1.0-6.0	28*10.5
9.0*1600	800-1600	25	265	40	2.0-9.0	28*10
12*2000	1000-2000	35	285	20	3.0-12.0	36*10
16*2200	1000-2200	35	285	20	4.0-16.0	36*10

Flow chart and product unit

Item	Quantity		Item	Quantity
(1) Hydraulic loading coil car	1 set	√	(9) Pinch/shear	1 set	√
(2) Hydraulic decoiler	1 set	√	(10) Back loop pit & bridge	1 set	√
(3) Supporting arm	2 sets	√	(11) Tension station	1 set	√
(4) Pinch / Leverler /Shear	1 set	√	(12) Hydraulic recolier	1 set	√
(5) Front loop pit & bridge	1 set	√	(13) Hydraulic unloading coil car	1 set	√
(6) Guardrail	1 set	√	(14) Waste scrap rewinder (on line/off line)	1 set	√
(7) Side guider	1 set	√	(15) Pneumatic & hydraulic system	1 set	√
(8) Slitter head	1 set	√	(16) Electric control system	1 set	√

Packaging & Shipping
Processing capacity
Exhibition photos
Certifications
FAQ
Q: Are you manufacturer?
A: Yes. We are manufacturer. We have our own technical team. Welcome to visit us.

Q: What payment terms do you accept?
A: We are flexible on payment terms, please contact us for details!

Q: What info you need before you make the proposal?
A: The pipe diameter and thickness range which you need or the profile drawings material information, your special requirements and speed of the machine.

Q: How do you do QA?
A: We have special team do strict QA, this is our strengths:
(1)Every gear box will be tested for 8 hours with oil inside to guarantee there is no leak.
(2)Every shaft will be inspected for the centering jumpiness.
(3)Every roller will be checked to make sure it is in the range of tolerance critical parts will be inspected for all dimensions.

Q: Why choose you? What is the difference between you and other Chinese supplier?
A: You can get higher quality product & better professional service from TENGDI with same price.

---
