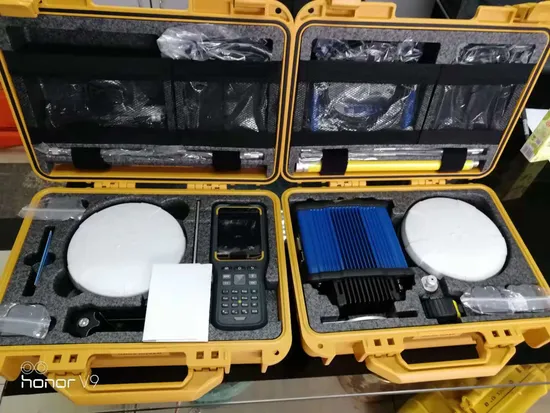

Hi Target V30+ Gnss GPS Receiver Base and Rover (V30+)

Product Description

Hi Target V30+ Gnss GPS Receiver Base and Rover (V30+) Key features
1) Advanced Pacific Crest Maxwell 6 Custom Survey GNSS Technology
2) Support GPS, GLONASS, BDS, GALLILEO
3) Rugged design and user-friendly functions
Communications:
1)GPRS
Built-in GPRS module
Network RTK (via CORS) range 20-50km
2)HI-TARGET internal UHF radio (standard)
Frequency :460 MHz with 116 channels
Transmitting power :0.1W, 1W, 2W adjustable
Transmitting Speed :Up to 19.2Kbps
Working range: 3~5Km typical, 8~10km optimal
3)HI-TARGET External UHF radio (standard)
Frequency : 460 MHz with 116 channels
Transmitting power : 5W, 10W, 20W, 30W adjustable
Transmitting Speed : Up to 19.2Kbps
Working Range : 8~10Km typical, 15~20km optimal
Support other external communication device
For example, external GSM modem Specifications:

Model		V30+
System Configuration	Data storage	8G internal memory
	Data Formats	1Hz positioning output, up to 50 Hz - depends on installed option
		CMR: sCMRx,CMR,CMR+input and output
		RTCM: RTCM2.X, RTCM3.0, RTCM3.2 input and output
		Navigation outputs ASCII: NMEA-0183 GSV, AVR, RMC, HDT, VGK, VHD, ROT, GGK, GGA, GSA, ZDA, VTG, GST, PJT, PJK, BPQ, GLL, GRS, GBS
		Navigation outputs binary: GSOF,1 Pulse Per Second Output
Satellite Signals Tracked Simultaneously	Channels	220,Advanced Pacific Crest Maxwell 6 Custom Survey GNSS Technology
	BDS	B1, B2,B3
	GPS	L1, L2C/P, L5
	GLONASS	Simultaneous L1, L2
	SBAS	Simultaneous L1, C/A, L5(EGNOS, WAAS, MSAS, GAGAN, QZSS)
Static and Fast Static GNSS Surveying	Horizontal	2.5mm+0.5ppm RMS
	Vertical	5mm+0.5ppm RMS
Post Processing Kinematic (PPK / Stop & Go) GNSS Surveying	Horizontal	1cm+1ppm RMS
	Vertical	2.5cm+1ppm RMS
	Initialization time	Typically 10 minutes for base while 5minutes for rover
	Initialization reliability	Typically > 99.9%
RealtimeKinematic(RTK) surveying	Horizontal	8mm+1ppm RMS
	Vertical	15mm+1ppm RMS
	Initialization time	Typically < 8seconds
	Initialization reliability	Typically > 99.9%
Code Differential GNSS Positioning	Horizontal	25cm+1ppm RMS
	Vertical	50cm+1ppm RMS
	SBAS	0.50m Horizontal, 0.85m Vertical
Power and Battery	Power	6V to 28V DC external power input,Power consumption ≤3.5W
	Internal battery	Rechargeable, removable 7.4V, 5000mAh Lithium-ion battery
	Internal battery life	static:13 - 15 hours
		RTK Rover (UHF/GPRS/3G) 10 - 12 hours
		RTK Base 8 - 10 hours
I/O Interface	1 xBluetooth, NFC ,1 x standard USB2.0 port ,1 x TNC antenna connector,1 x RS232 serial port ,1 x DC power input (5-pin)
Physical	Dimensions (W x H)	164mm x 83.5mm
	Weight	1.4kg with internal battery, internal radio,standard UHF antenna
	Operating temperature	-45ºCto +65ºC (-49ºF to +149ºF)
	Storage temperature	-55ºC to +85ºC(-67ºF to +185ºF)
	Humidity	100%, considering
	Water/dustproof	IP67 dustproof, protected from temporary immersion to depth of 1m (3.28ft).
	Shock and vibration	Designed to survive a 3m(9.84ft) natural fall onto concrete.

Handheld Specifications:

Model		iHand30		Qmini MP
System Configuration	OS	Android 6.0		Windows mobile 6.5
	Processor	MT6589, 1.5GHz, 4core		806MHz
	RAM	2GB RAM+16GB ROM		256MB
	Flash memory	128 GB		8 GB
Communication interface		Bluetooth,USB,WIFI:802.11b/g,MicroSD card slot, support up to 32 GB support 4G		Bluetooth,Mini USB,WIFI:802.11b/g,MicroSD card slot, support up to 32 GB,Built-in 3G module
Physical	Power	3.7V, 5200mAh lithium battery, up to 15 hours continuous work		3.7V, 3100mAh lithium battery, up to 8 hours continuous work
	Keyboard	Physical keyboard		10 keys, include the four arrow keys
	Size	208mm x 83mm x 24mm		152mm x 82mm x 32mm
	Weight	440g (with battery)		315g (with battery)
	Operating temperature	-20ºC to +55ºC		-20ºC to +70ºC
	Storage temperature	-30ºC to +65ºC		-30ºC to +80ºC
	Water/dustproof	IP68		IP65
	Anti-shock	1.2m natural fall		1.5m natural fall

Product:

Packaging Details
1 set packed in 2 cartons: 50*50*60cm (25kg) 15*15*150cm(8kg)
Our warranty policy:
1. For instruments (total station,theodolite,GNSS,auto level), we offer 1 year warranty,for accesories(Prism,pole,tripod ,levelling staff).we offer 6 months warranty,from the day you get the product.
2.For product within the warranty period,please send us photos to show the problem.And then we will decide to send you parts or you send the instrument back to us to repair.We will be responsible for the double-run freight and other cost.Please make sure to contact us first instead of sending the damaged parts direct to us.
3.For problem out of the warranty period or warranty liability,we will judge the probelm and quoted for you.You need to pay double-run freight and the maintenace cost.
4.For all instrument we provide life-long technical support.Remark:Improper use of the instrument and man-made damage of the instrument is not coverd in warranty liablity.Warranty only aimed at the problem caused by the product quality.

---
