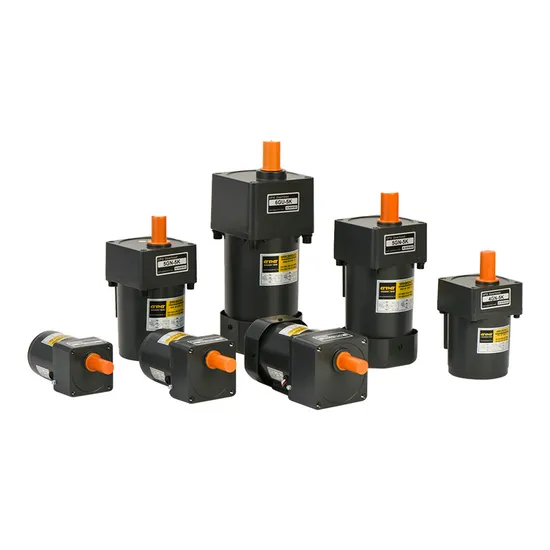

25W-250W Micro AC Gear Motor Reversible/Induction Electric Motor Reducer for Printing Machine

US$20.00-30.00 1 Piece (MOQ)

Basic Info.

Model NO.

4RK14CA

Power Source

AC Motor

Function

Control, Driving

Casing Protection

Protection Type

Number of Poles

Structure

Electromagnetic

Type

Asynchronous Motor

Certification

ISO9001, CCC, CE, UL

Brand

Gpg

Power

6W~250W

Gearbox Speed Ratio Range

3-500

Output Shaft Diameter

12mm

Transport Package

Carton

Specification

60-100mm

Trademark

GPG

Origin

Zhejiang, China

HS Code

85014000

Production Capacity

50000PCS/Month

Product Description

Model Selection
GPG Motor, A China leading & pioneer manufacturer of various gear motor for your needs. We are specialized in Induction Motor, Reversible Motor, DC Brush Gear Motor, DC Brushless Gear Motor, CH/CV Big Gear Motors, Planetary Gear Motor ,Worm Gear Motor etc, which are widely used in various fields of manufacturing pipelining, transportation, food, medicine, printing, fabric, packing, office, apparatus, entertainment etc and are the preferred and matched product for automatic machine.
• Model Selection
Our professional sales representive and technical team will choose the right model and transmission solutions for your usage depend on your specific parameters.
• Drawing Request
If you need more product parameters, catalogues, CAD or 3D drawings, please contact us.
• On Your Need
We can modify standard products or customize them to meet your specific needs. Product Parameters

AC Gear Motor
4	RK	25	R	C	C	F	G10
Outer Diameter	Motor Type	Power Capacity	Speed Motor	Votage	Output Shaft Shape	Accessories	Derived Code
2 - 60mm 3 - 70mm 4 - 80mm 5 - 90mm 6 - 100mm	IK - Induction RK - Reversible TK - Torque	6 - 6W 15 - 15W 40 - 40W 60 - 60W 90 - 90W 120 - 120W 140 - 140W 180 - 180W 200 - 200W 250 - 250W	R	A -1 Phase 110V C - 1 Phase 220V C2 - 1 Phase 110V/220V S - 3 Phase 220V S2 - 3 Phase 220V/380V S3 - 3 Phase 380V S4 - 3 Phase 440V SS3 - 3 Phase 220V/380V	A - Round Shaft C - Toothed Shaft	T/P - Thermally Protected F - Fan M - Electro-manetic Z - Damping	Dimension Shaft Length

AC Gearhead
4	GN	60	K	G12	T
Outer Diameter	Motor Shaft Shape	Gear Ratio	Bearing Model	Output Shaft Diameter	Installation Method
2 - 60mm 3 - 70mm 4 - 80mm 5 - 90mm 6 - 104mm	GN - Bevel Gear Shaft GU - Bevel Gear Shaft GS - Strengthen T-shaped installation GZ - Right-angle gearbox GM - Intermediate gearbox	60 - 1:60	K - Standard Rolling Bearings RT - Right Angle RC - Right Angle Hollow	G12 - Ф12mm	L - Screw Hole T - Through Hole

Specifications of Motor
Motor Type	Motor Model No.				Description						Rating				Start Condenser		Gear Model No.
	Cylindncal Output Shaft		Pinion Cut Output Shaft		Force	Peripheral Wave No.	Valtage	Current	Start Turning Moment		Turning Moment		Revolving No.		Capacity	Resistance Voltage	Pairing Bearing	Middle Gear
					( W )	( Hz )	( V )	( A )	( gcm )		( gcm )		( rpm )		( uF )	( V )
Rerersible Motor	4RK25A-A		4RK25GN-A		25	50	110	0.60	1950		1950		1250		8	250	4GN-K	4GN10X
						60	110	0.55	1650		1620		1500		7
	4RK25A-C		4RK25GN-C			50	220	0.30	1950		1950		1250		2	500	4GN-K	4GN10X
						60	220	0.27	1650		1620		1500		1.8
	4RK30A-A		4RK30GN-A		30	50	110	0.70	2400		2350		1250		10	250	4GN-K	4GN10X
						60	110	0.65	1950		1950		1500		8
	4RK30A-C		4RK30GN-C			50	220	0.35	2400		2350		1250		2.5	500	4GN-K	4GN10X
						60	220	0.32	1950		1950		1500		2
	4RK40A-A		4RK40GN-A		40	50	110	0.80	3250		3250		1250		16	250	4GN-K	4GN10X
						60	110	0.75	3600		2600		1500		14
	4RK40A-C		4RK40GN-C			50	220	0.40	3250		3250		1250		4	500	4GN-K	4GN10X
						60	220	0.38	2600		2600		1500		3.5
Induction Motor	4IK25A-A		4IK25GN-A		25	50	110	0.55	1650		1950		1250		7	250	4GN-K	4GN10X
						60	110	0.50	1380		1620		1500		6
	4IK25A-C		4IK25GN-C			50	220	0.28	1650		1950		1250		1.8	500	4GN-K	4GN10X
						60	220	0.25	1350		1620		1500		1.5
	4IK30A-A		4IK30GN-A		30	50	110	0.65	2050		2350		1250		10	250	4GN-K	4GN10X
						60	110	0.60	1750		1950		1500		8
	4IK30A-C		4IK30GN-C			50	220	0.33	2050		2350		1250		2.2	500	4GN-K	4GN10X
						60	220	0.30	1750		1950		1500		2
External Dimension
Type				Reduction Ratio			L1(mm)				L2(mm)					L3(mm)
4IK(RK)25A(GN)				1:3 ~ 1:20			86				32					118
4IK(RK)30A(GN)							86				32					118
4IK(RK)40A(GN)							101				32					133
4IK(RK)25A(GN)				1:25 ~ 1:180			86				44					130
4IK(RK)30A(GN)							86				44					130
4IK(RK)40A(GN)							101				44					145
Gear Head-Torque Table (kg.cm)
( kg.cm x 9.8 ÷ 100 ) = N.m
r/min			500	300	200	150	120	100	75	60	50	30	20	15	10	7.5	6	5	3
Gear Redcution Ratio	50Hz		3	5	7.5	10	12.5	15	20	25	30	50	75	100	150	200	250	300	500
	60Hz		3.6	6	9		15	18		30	36	60	90	120	180		300	360	600
Permissible Load	25W	kg.cm	4	6.7	10	13.3	16	20	26.7	32	39	65	80	80	80	80	80	80	80
	30W	kg.cm	4.8	8	12	16	20	24	32	38	45	76	80	80	80	80	80	80	80
	40W	kg.cm	6.7	11	16	21.3	28	33	42	54	65	80	80	80	80	80	80	80	80
Note: Speed figures are based on synchronous speed, the actual output speed, under rated torque conditions, is about 10~20% less than synchronous speed. Grey background indicates: output shaft of geared motor rotates in the same direction as output shaft of motor White background indicates: rotation in the opposite direction
