China Made Metal Moulds CNC Milling Drilling Vertical Machine Center

Product Description

China made CNC Milling drilling vertical machine center
Product Description

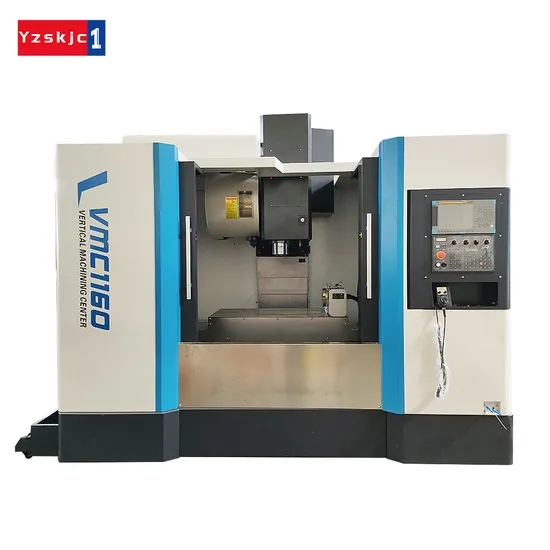

VMC1160 vertical machine center Features:
1.Adopting Taiwan's Shangyin or Yintai linear rails, with a width of 45mm for the three-axis rails.
2.Extra-wide base for stability akin to Mount Tai.
3.Dual-layer arm structure for the power column, providing 1.5 times reinforcement in rigidity.
4.X-axis saddle with an exceptionally large span, featuring a "human" shaped column design for steadfastness.
5.Employing Taiwan's C3-grade ball screws for the three axes, equipped with original NSK bearings (3062), pre-stress treated to prevent thermal displacement.
6.High-rigidity BT spindle with a ring spraying design.
7.All machine components are from renowned manufacturers, featuring top-tier configurations within the industry.
Product Parameters
Main technical parameters :

Item	Specs	Units	VMC1160
Travel	X/Y/Z axis	mm	1100/600/600
	Distance from spindle end to worktable	mm	120-720
	Distance from spindle center to column guide rail	mm	650
	Rail form	/	Three axis linear guide rails
Worktable	Worktable size(L*W)	mm	1200*600
	Max. loading capacity	kg	800
	T slot	No/mm	5-18×100
Spindle	Spindle taper	mm	BT40
	Spindle speed	rpm	12000
	Spindle drive		belt drive
Feeding	Rapid feed rate for X/Y/Z axis	m/min	30/30/24
	Max. cutting feed rate	mm/min	10000
Tool magazine	Tool changing method		Side-mounted mechanical arm
	Tool holder specification	type	BT40
	Tool capacity	tools	30
	Maximum tool diameter	mm	50
	Maximum tool length	mm	300
	Maximum tool weight	kg	8
	Fastest tool changing time	sec	4
Motor	Spindle motor	kw	11/15
	Servo motor for three axes	kw	3.0/3.0/3.0
Precision	Positioning accuracy	mm	±0.006
	Repeat positioning accuracy	mm	±0.004
Power	Power requirements	kva	30
	Power demand	Kg/cm	6-8
Overall size	Machine size (L*W*H)	mm	3300*2500*2700
	Weight	ton	7.5

Standard accessories :

No.	Item	No.	Item
1	30 disc type tool magazine	11	Warning Light
2	Fully enclosed guard	12	Footing blocks
3	Automatic lubrication system	13	Workpiece cooling system
4	Tool box	14	Network transmission and CF card function
5	Working light	15	Rigid tapping
6	Electrical box heat exchanger	16	Portable chip blowing air gun
7	Spindle nose dustproof blowing	17
8	Spindle annular water outlet	18
9	Machine cleaning water gun	19
10	Iron cutting disc and chip box	20

Detailed Photos
Main configuration photos :
Packaging & Shipping
Packing list:

No.	Item	Specs	Q'ty	Remarks
1	Allen wrench	1.5---10	1set
2	screwdriver	Slotted screwdriver	1set
3	screwdriver	Phillips screwdriver	1set
4	raw material belt		2pcs
5	glass glue		1bottle
6	Electronic handwheel		1pc
7	screw		1bag
8	footing		1set
9	Operation Manual		1pc
10	Certificate of qualification		1pc

Company Profile
Nanjing Yunyan Digital Technology Co. Ltd is the exporting department of Jiangsu Yizhong CNC Machine Tool (Group) Co., Ltd . Our group is one of the Top machine tool factories in China, which set up in 2006, located in Chengbei industrial area, Yangzhou city, Jiangsu province. It covers an area of 498700 square meters and nine production lines. We're also the National Torch Plan and High-tech enterprise. Our main products includes CNC machine center ,CNC gantry drilling machine ,CNC gantry drilling and milling machine ,CNC boring and milling machine center ,Plate Planer and milling machine ,oil press machine,CNC lathe and leveling machine. Meanwhile , with a powerful technician team, OEM machine is our strong suit . With many years' hard-working, we have built long term and close cooperation relationships with many friends, such as Russia, Australia, United Kingdom, Italy, South Americas, Egypt, India and so on,welcome your consulting . Our customers
After Sales Service
The warranty period is 12 months, calculated from the date of successful installation and trial operation.
The equipment provided by the seller is new and unused. The performance of the equipment, after installation, debugging, and operation complies with the relevant national standards or stipulated in the agreement between the parties.
The seller shall provide relevant technical support within 2 hours upon receiving a phone call from the buyer. In the event that the buyer is unable to resolve the issue independently, the seller will conduct troubleshooting at the within 24 hours in sellers' country . Parts identified as quality-related issues during the warranty period will be replaced free of charge.
We have professional technician team and we could offer installation and training in customers' factory , just charge for reasonable labor fee .

FAQ
What equipment can you get from our factory ?Lathe machineCNC Vertical machine centerLeveling machinePlate edge milling machineBoring milling machineEdge planerGantry drilling and milling machineOil pressureRolling machineWe support customized machines , welcome your asking .Why choose Jiangsu Yizhong Machine Tool Co.,Ltd?Quality guarantee : We have our own factory 498700m2 and we have mature manufacturing experiences since 2006 . Before machine sending , we will be debugging a long time and confirm it could run well . We have a rigorous QA and QC procedures and confirm each process following the orders' standard strictly . welcome our customer-self coming to check the machine tools quality .Delivery time : Usually our delivery time from 10 working days to 6 months . according to the machines you want to buy .some machines have machine bed in stock . When we quote you , we will write the machine tool delivery time , and we will abide it carefully .Advanced technician team : We recognize that technical innovation is very important for a manufacturer , so our factory set up the Jiangsu Yizhong Industrial design and reach institute years ago ,which makes our factory powerful in customized machines . If some technical questions our sales person can not answer , they will ask them and they can give a quick response . By the way , our engineers are available to customers' local factories to assist them to do installation , operation guide and machine tool upkeep . Sales team : Our salesmen all are trained before they serve to our customers in factory , so most questions about the machine tools , they can give fast response ,which will save our customers' time . Our salesmen all love their jobs , so they have passions when working . if you have any technical questions could ask them better before 12pm ,China time .

---
