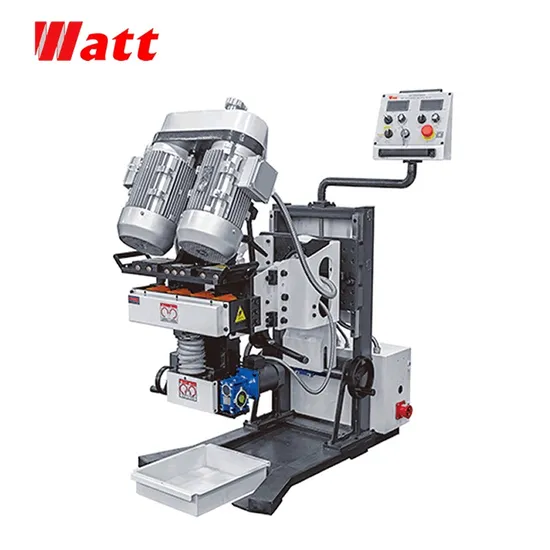

Automatic Plate Chamfering Beveling Machine SKF-840

Product Description

OVERVIEW
SKF-840 Automatic plate beveling machine, designed for metal plate prep-welding, to beveling, chamfering and milling. For small size plate, machine fixed, plate feed and process automatically; For large size plate, plate fixed, machine along the edge of the plate process automatically. The machine can be suspended process without a base when the working height is not standard, This machine adopts milling method, a powerful, widely used steel plate grooving equipment. Small volume, light weight, move easily, simple operation, the essential production equipment of nuclear industry, shipbuilding, pharmaceutical machinery, pressure vessels and other industries fields.

Name	Automatic plate beveling machine
Model	SKF-840
Brand	WATT
Use	Plate beveling,chamfering
OEM	Acceptable
Customize	Acceptable
MOQ	1 unit
Packing	Wooden case
Dimension	130*84*145 cm
Gross weigh	380kg
Lead time	7days
Port of landing	Ningbo or Shanghai

FEATURES 1.Beveling shape: V, Y,K,X
2.Beveling angle: 0° -±60°
3.Surface roughness: Ra3.2-Ra6.3
4.Cold cutting, don't change the material of plate.
5.The cutter head can be turned over 180°,easy to bevel plate double side
6.Suitable for carbon steel, stainless steel, alloy steel, Cast iron, hard plastic, etc.

SPECIFICATION

Electric supply	AC 380V 50HZ 3P	Total power	6.52KW
Spindle rotation	500-1400rpm	Feeding speed	0-1500mm/min
Clamping Thickness	6-80mm	Clamping width	≥80mm
Beveling angle	0°-±60°	Plate Length	≥300mm
Beveling width	0-70mm	Single bevel width	0-20mm
Cutter diameter	Ø80mm	Insert Qty.	6pcs
Working height	800-810mm	Travel space	1200*800mm
Dimension	130*84*145cm	Gross Weight	380KG

Above parameters just for reference only, not acceptance criteria
POWER SUPPLIES

Electric: AC 3800V 50HZ 3P Power:6.52KW

APPLICATION
FAQ
Q:Do you have manual or operation video for us to know more about the machine?
A:Yes, not only manual or operation video, 3D drawing also available to make as per your design,also the video we can make of testing .
Q:How can I trust you for the first time business ?
A:Please note our above business license and certificate. And if you don't trust us, then we can use MIC trade assurance service, guarantee your money, and guarantee your machine's on-time delivery and machine quality.
Q:Is engineer available to serve oversea?
A:Yes, but the travel fee is paid by you. So actually to save your cost, we will send you a video of full details machine installation and assist you till the end.
Q:How can we make sure about the machine quality after we put the order?
A:Before delivery, we will send you the pictures and videos for you to check the quality, and also you can arrange for quality checking by yourself or by your contacts in China.
Q:Will you provides the door to door service?
A:Yes. Please offer us your final destination, we will check with our agent to see if it available, and most of the area is ok for us to clearing and sending in your countries.

---
