Product Details
Product Description
Product Description

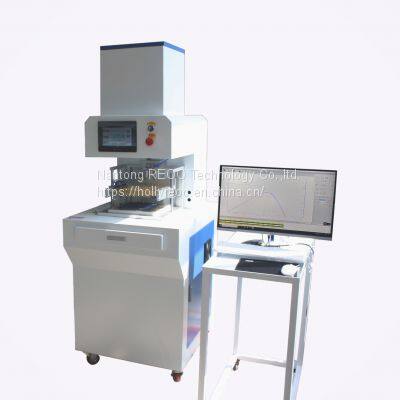

Solar Cell Tester
Product Description
Apply to the test and result record of mono-Si or poly-Si solar cell pieces.
Measure : 750mm*650mm*2100mm
Model : GTC-B
Related Parameters
| Light intensity: | 100mW/cm2 (continuous adjustable range 70-120W/cm2) |
| Light intensity non-uniformity: | ≤±2% |
| Light intensity Instability degree: | ≤±2% |
| Test result consistency: | ≤± 1% |
| Test error of electrical properties: | ≤± 2% |
| Single flash time: | 10ms |
| Effective Test range: | 200x200mm |
| Measuring voltage: | 0~0.8V(resolution 1mV) |
| Measuring current: | 0~20A(resolution 1mA) |
Detailed Images
Packing & Delivery
Packing:
1) All the equipment, tools, accessories and goods are suitably packed.
2) All packages are liable to be opened for customs' examination.
3) All the packages are designed to facilitate.
4) Each package has the printed shipment information.
Delivery time:
Around 20 - 45 days after received the advance payment.
Our Services
Installation:
We arrande our engineers to buyer’s factory to install machine.
All expenditure on travel, food,accommodation and transportation of our engineers/ technicians for installation will be borne by buyer. REOO company borne the salary of engineer/technicians.
Training:
We supply both overseas and local training to the engineers and technicians on operation and maintenance.
Buyer borne air tickets, lodging, food and training material .
Manuals/Documents:
Operational and maintenance manuals of all equipment is in English, along with a soft copy in a CD
(compatible version: MS Word/ PDF).
Raw material:
We supply all the material for production solar panel from China for trial production and formal production,buyer pay for the cost.
Our Company
REOO Technology Co., Ltd. is a leading manufacturer for solar panel assembly production line in China. We have 9 years history to manufacture all size of laminator also whole of production line. We have a great deal of experience for design, manufacturing, shipping, installation, commissioning and training for solar panel production line . We have exported many of production line to other countries. This specification include design, manufacturing, shipping, testing and commissioning of assembling plant of solar panel on turn key basis.
