Factory Direct High-Performance Vertical Auto Feed CNC Milling Machine Xk7124b

Product Description

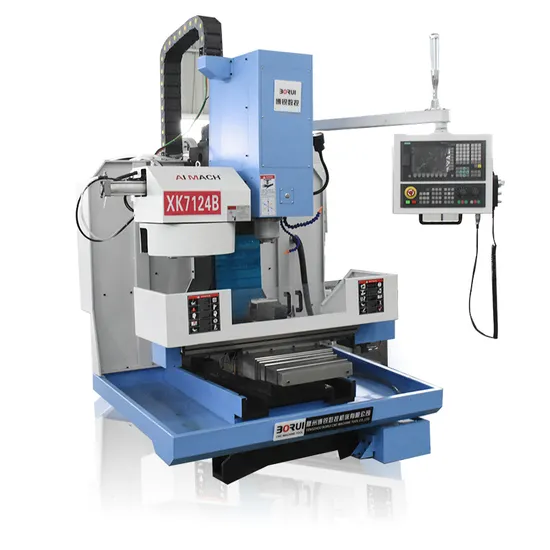

XK7124B CNC Vertical Milling Machine
Product Description
Product Description
The main performance characteristics:
1.The fuselage and main components are high strength cast iron, microstructure stability, ensure the stability of machine tool for long-term use.
2.The column at the bottom of A type bridge type structure, combined with the big box base, greatly reduce the vibration of machine on heavy cutting
3.The pre tension precision ball screw drive
4.The high speed, high precision, high rigidity spindle unit
5.The design of oil-water separation
6.The intermittent automatic lubrication
7.Automatic scraping knife system
Application:
The cnc milling machine can be applied to many fields such as mechanical processing and mould manufacturing, can adapt from roughing to finishing processing requirements, has the characteristics of high precision, high efficiency, is widely used in aerospace, military industry, mould, automobile, internal combustion engines, textile machinery, chemical machinery processing, oil, electronics and other industries.

Product Parameters

Specification		XK7124B
Worktable size length(mm)×width(mm)		1000×240
T-slot quantity-width(mm)		5-14-44
The max loading weight(kg)		200
X axis stroke(mm)		500
Y axis stroke(mm)		350
Z axis stroke(mm)		450
The distance from end face to worktable surface (mm)		80-530
Teh distance from spindle ctnter to column surface(mm)		310
Spindle tapper		BT40
Spindle speed (Rpm)		6000
Main motor power (kW)		3.7K(servo)
Feeding motor	X axis torque(N.M)	6(servo)
	Y axis torque(N.M)	6(servo)
	Z axis torque(N.M)	10(brake automatically)
Quickly moving speed(m/min.)		4000
Cutting feed speed(mm/min)		1-4000
Screw specification(diameter mm/screw pitch mm)		32/6
Accuracy	Position accuracy (mm)	0.01
	Repeat position accuracy(mm)	0.008
Machine weight kg		1500kg

The machine standard accessories :

Item	Name	Specification	quantity
Standard accessories	Collect chuck shank	BT30	1PCS
	Milling chuck		1SET(8 pcs)
	Rivet		1PCS
	Hook spanner		1pcs
	Inner hexagonal spanner		1set

Detailed Photos

Packaging & Shipping
Packing shipping
For machine: usually by sea;
For documents: by international express, eg. DHL,TNT or EMS.
For packing :Free fumigation plywood packaging steel base
After Sales Service
our service
1. Technical support online service provided.
2. Technical files service provided.
3. Machine operation video provided
4. On-site training service provided.
5.Spare parts replacement and repair service provided.
6 All of the questions will be replied within 8 hours
7. If you need to develop products with your own specification, we can help you to work it out.
8. Always be honest, never lie to customer, and never declare anything we don't have
Company Profile



FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
We want to know:
1.What's your Industrial Voltage?
2.We strongly suggest you to tell us size, material of your workpiece for our evaluation, if possible, better to send us workpiece drawing, so that we can recommend you most suitable model!
3.If need CIF Price, please kindly tell us the port of destination.
