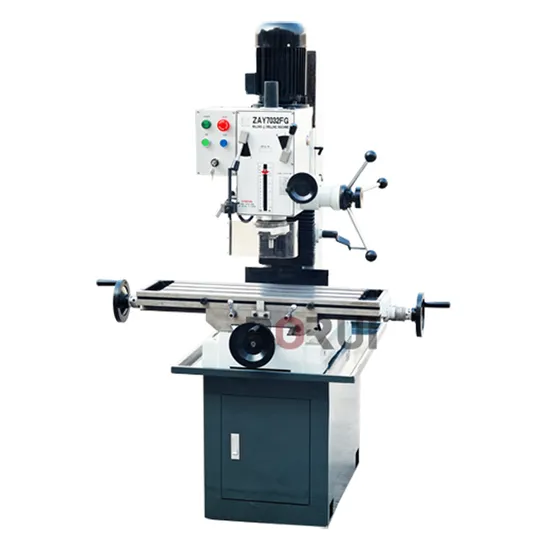

Zay7032fg/1zay7040fg/1zay7045fg/1bench Type Vertical Milling & Drilling Machine

Product Description

Multifunction drilling and milling machine ZAY7032V/1 ZAY7040V/1 ZAY7045V/1
Product Description

Feature:
The drilling and milling machine is a small and medium-sized general-purpose metal cutting machine that can be used for both
horizontal and vertical milling. It is suitable for drilling, expanding, reaming, boring and hole machining; for example, wafer
milling machines, angle milling cutters, forming milling cutters and end milling cutters, which can be used to mill planes,
bevels, vertical faces and grooves. It can be used as a multi-directional milling operation after the attachment of the vertical
milling head.

Product main technical parameters:

SPECIFICATION
ITEM	ZAY7025FG	ZAY7032FG	ZAY7040FG	ZAY7045FG
Max Face mill capacity	25mm	32mm	40mm	45mm
Max End mill capacity	63mm	63mm	80mm	80mm
End milling capacity	20mm	20mm	32mm	32mm
Max.distance from spindle nose to table	445mm	450mm	450mm	450mm
Min.distance from spindle axis to column	203mm	260mm	260mm	260mm
Spindle travel	85mm	130mm	130mm	130mm
Spindle taper	M.T.3 or R8	M.T.3 or R8	M.T.4 or R8	M.T.4 or R8
Step of spindle speed	6	6	6	6
Range of spindle speed 50Hz	95-1420 r.p.m	80-1250 r.p.m	80-1250 r.p.m	80-1250 r.p.m
60Hz	115-1700 r.p.m	95-1500 r.p.m	95-1500 r.p.m	95-1500 r.p.m
Swivel angleof headstock(perpendicularly)	90°	90°	90°	90°
Table size	520×160mm	800×240mm	800×240mm	800×240mm
Forward and backward travel of table	140mm	175mm	175mm	175mm
Left and right travel of table	290mm	500mm	500mm	500mm
Motor Power	0.37KW	0.75KW(1HP)	1.1KW(1.5HP)	1.5KW(2HP)
Voltage/frequency	As customer's requirement
Net weight/gross weight	180kg/240kg	320kg/370kg	323kg/373kg	325kg/375kg
Packing size	680×750×1000mm	770×880×1160mm	770×880×1160mm	770×880×1160mm
Loading amount	48pcs/20'container	36pcs/20'container	36pcs/20'container	36pcs/20'container

Packed in plyw/case
Delivery time: 35 days after down payment Packaging & Shipping
Packing shipping
For machine: usually by sea;
For documents: by international express, eg. DHL,TNT or EMS.
For packing :Free fumigation plywood packaging steel base
our service
1. Technical support online service provided.
2. Technical files service provided.
3. Machine operation video provided
4. On-site training service provided.
5.Spare parts replacement and repair service provided.
6 All of the questions will be replied within 8 hours
7. If you need to develop products with your own specification, we can help you to work it out.
8. Always be honest, never lie to customer, and never declare anything we don't have

Company Profile
Since 1996,20 years' history for machine tool manufacturing
10 years' history for export
Total 2 manufacturing bases in china
Sino-germany technology cooperation
Production of 8 categories, more than 130 kinds of products
Set up design&research center at TAIWAN
Exported to total 48 countries in the world covered most areas
One-stop shopping for nearly all other types' machine tools
FAQ
1)Q: Which trade term I can choose?
A: You can choose FOB,CIF, DDU or other terms. You can book ship or I can book ship for you.
2)Q: How can I get quotation from you?
A: You can make the inquiry online , or send email to us. It is better if you can tell what is your detailed request information. We will reply to you within 2 hours on work days, and within 24 hours on holiday.
3)Q: How can I choose right machine and how to assure quality?
A: You can choose machine on our website accodring to your request. Or You can let our seller know what is your request specifcation or what is your parts, so let our seller recommend suitable machine to you. We have do trade machine years, and export machine to over 100 countries. We have CE, ISO, SGS and other quality certificate.
4)Q: how can I make the payment?
A: We can make the deal online platform, you can pay by T/T or Credit card. You can also pay to my company business bank account. You can also choose L/C or other way.
5)Q: How long does it take to get machine?
A: If the machine you will order is standard machine, we can ready the machine within 15days. If special machine, please confirm with our seller. The ship time is about 30 days to Europe, America. If you are from Australia, or Asia, it will be shorter. You can place order according to delivery time and ship time.
6)Q: how about warranty?
A: warranty is one year, but we will offer lifetime service for machine.

---
