Seed Gravity Destoner for Soybean Mung Bean Sesame Seed Wheat Corn Oil Seed

Product Description

seed Gravity Destoner for soybean mung bean sesame seed wheat corn oil seed
Product Description
1.Product Description:

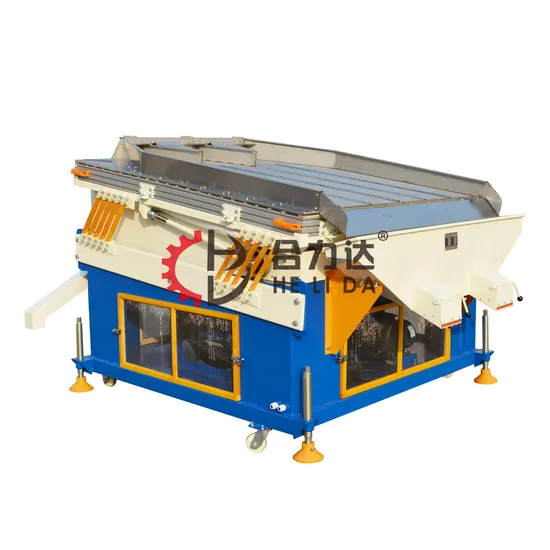

QSC-10 type destoner is widely used in the stone and soil removal processing line of sesame, beans, quinoa seeds, corn, coffee beans, wheat, peanuts and other seed crops.
It can effectively remove stones of the same volume as the raw materials, and the stone removal effect is higher than 99.5%.
2. Working principle:
It is based on the proportion of grain crop and cobble density differences, by adjust the pressure and vibration frequency separate the stone and grain. The machine is equipped with a multi blade fan with high accuracy,The lighter grain crops will be suspended state, and the larger proportion of the stones will cling to the stainless steel mesh by adjusting the air pressure, and then by adjusting the frequency that Destoner table vibrates so as to achieve the purpose of separation. The machine equipped with frequency conversion control device can be subtle regulation, even if the proportion of the difference is very small, stones also will be separated.
Product Parameters

Model	QSC-10
Size L×W×H	2550*2000*1600 mm
Weight	950 kg
Capacity	10 T/H
Voltage	380V(220V/440V need customized) 50/60hz 3 phase
Screen dimension	2000*1800 mm
Power	Total:8.45 kw

Detailed Photos
Adjustable vibration angle, adjustable vibration frequency, adjustable wind speed, variable frequency control, and can be equipped with a dust-free exhaust system.
Gravity Table made of aluminum alloy frame and stainless steel woven mesh(big size seed need use big hole size table, small size seed need use small hole size table)
Related machine
Our main product: combined type seed cleaner, pre cleaner, vibration screen machine, air screen cleaner, gravity separator, gravity destoner, magnetic separator, color sorter, packing machine,seed polishing machine, bucket elevator, conveyor belt, auger, corn peeler and thresher etc.
