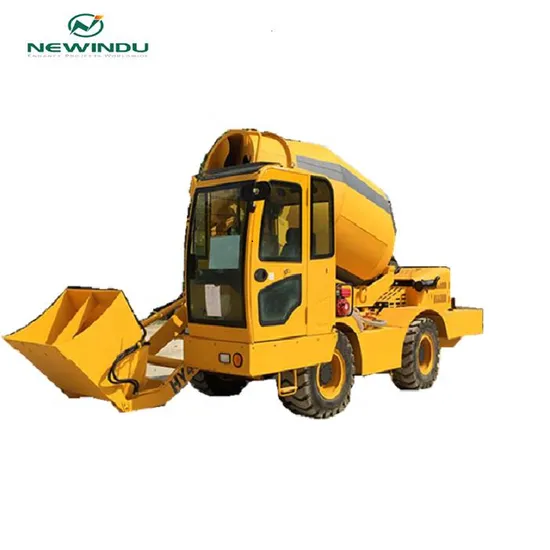

1.6m3 Load Capacity Mini Automatic Self Loading Concrete Mixer Hy160 with Yunnei 60kw Engine in Stock

US$15,000.00
1-2 Pieces
US$8,000.00
3+ Pieces

Basic Info.

Model NO.
HY160
Machining Process
Hydraulic
Structure
Rotor Type
Productivity
25m²/h
Feeding Height
1400mm
Vibrating Amplitude
2.6mm
Certification
ISO9001: 2000, CE
Condition
New
Color
Yellow
Wheel Base
2600m
Max. Gradeability
44%
Max. Output
1.6m3
Reclaiming Capacity
1.6m3
Mixing Power
12-14m3/H
Bucket
600L
Transport Package
Nude Package
Specification
5400*2400*3500mm
Trademark
Xuzhou factory
Origin
Jiangsu, China
HS Code
8427209000
Production Capacity
100pieces/Month

Product Description

1.6m3 load capacity mini automatic self loading concrete mixer HY160 with Yunnei 60kw engine in stock
Description: Mobile concrete mixer feature combines self-loading, weighting, mixing and discharging, it can maximize and improve the job efficiency and reduce the production cost and time.
High efficiency
Capacity:8-10 cubic meters per hour
Labor-saving
4WD
Loading,pumping,mixing,delivering and discharge.
Swing drum.
Ultimate tank capacity technology can discharge with different angles by chute.
The clever discharge cone is designed,to provide stronger material sealing capacity and higher filling rate,thus improving the loading capacity of the tank up to 6%.
Loading capacity is larger for the same volume.
The center of gravity is low for the same loading capacity.
High-strength wear-resistant application.
Tank and blades are made of high-strength wear-resistant steel,with service life increased by 30%.
Hoppers and detachable chutes are made of multilayer high-strength wear-resistant liner plate,with service life increased by 50%.
Parameter:
Name
Item

Specification
Net 5500 KG
Transmission Full Hydraulic
4WD
Brake Air Brake
Chassis Off-road
Loader bucket capacity 0.4m3
Control Hydraulic
Tilt angle 20%
Speed High 0-25KM/H
Low 0-9KM/H
Mini turning radius 4.5M/R
Engine Type Yunnei
Rated Power/RPM 60KW/2200RPM
Max.Torque/RPM 360N.M/1400RPM
Cylinder 4
Starter Electric
Cooling type water cooling

Maxing Drum
Output capacity 1.6M3
Bank Angle 16 °
Chute Swing Angle ≥50°
Angle control Hydraulic
Loader control Hydraulic 4 way stick
Over size 5400x2400x3500mm
