Product Details
Product Description
Product Description
Factory

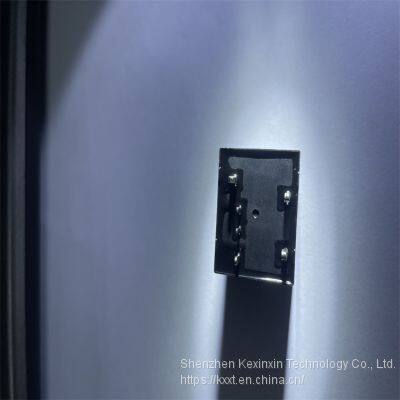

HFKP/0121H6T Hongfa
Automotive Relay
FFKP
\
Typical Applications
Tuming lamp, dangerous signal & scram lamp control, audio system, air-conditioning, magnetic valves control, low temperature control. seat adjustment, window defoggers, starter solenoid switches Anti-theft lock
Features:
Switching capacity up to 45a
spst-no & spdt contact arrangement
pc board terminals
two pinning out choices
open and sealed op67 available types
contact data:
contact arrangement : 1a.1c
max. switching current 60a inrush current: 100a
max. switching voltage : 75vdc
contact rating: 1a:45a 14vdc
max. switching power: 630w
contact material AGNI, AGSN02
INITIAL CONTACT resistance : 100mΩ
>>
