1-5t/H Output Wheat/Rice/Corn/Red Bean/Chaff/Cotton Straw Pellet Machine

Product Description

Product Description

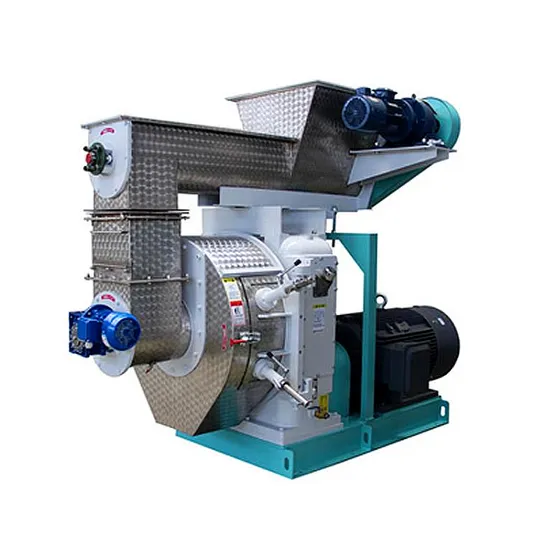

1-5t/H Output Ring Die Wood Pellet Machine Ring Die Wood Pellet Mill

How to make wood pellets? The following process can tell you the exactly:
*Debarking process(if needed)
*Chipping process(if the log is larger than 150mm, wood chipper can chip it into 20-50mm)
*Grinding process(grind the material into small powder to feed in pellet mill)
*Drying process(if the moisture is higher than 17%, need drying)
*Pelleting process(6mm, 8mm, 10mm, 12mm pellets can be formed by our pellet mill)
*Cooling & Sieving process(the temperature after pelleting is high to 90° C, it needs cooling)
*Packing process
Application
Customer Cases
Product Parameters
Technical parameter of 1-5t/H Output Ring Die Wood Pellet Machine Ring Die Wood Pellet Mill :

Model	Capacity(t/h)	Power(KW)		Ring Die Diamater(mm)	Pellet Size(mm)	Weight(T)
		Main	Feeder
MZLH420	0.8-1.2	90/110	1.5	Φ420	Φ6,Φ8,Φ10,Φ12	3.5
MZLH508	1.5-2	132/160	1.5	Φ508	Φ6,Φ8,Φ10,Φ12	4.5

Introduction of 1-5t/H Output Ring Die Wood Pellet Machine Ring Die Wood Pellet Mill :
1. Efficient gear transmission ensures maximum energy transfer.
2. The feeder is driven by frequency conversion motor, which can easily adjust the feeding quantity and ensure the uniform feeding.
3. The high precision of gear box material and transmission hole comes from the guarantee of casting technology and CNC processing equipment of professional foundry.
4. The blade arrangement and screw belt section of the quenching and tempering shaft make the quenching and tempering machine suitable for conveying sawdust.
5. The ring die and the driving wheel are connected with three pieces of quick discharge precision casting hoop, easy to disassemble the ring die.
6. Feeder, variable pitch anti-arch mechanism, imported frequency control.
7. Motor and gear shaft adopt new type of snake spring coupling, convenient disassembly, reliable transmission, high efficiency.
8. High precision transmission gear and gear shaft adopt carburizing and hardening, hard tooth surface grinding processing, smooth transmission, low noise, long service life.
On-site 1-5t/H Output Ring Die Wood Pellet Machine Ring Die Wood Pellet Mill:

If you're interested in our High Quality Ce approved pellet machine, pls kindly tell us the following information:
1. What's the capacity you want?
2. What's the raw material?
3. What's the size of the raw material?
4. What's the moisture content?
5. What's the final pellet size do you want?
6. Automatic packing or manual packing needed?
7. What's your country voltage? Company Profile
