Basic Info.
Transport Package
Wooden Case
Production Capacity
20000
Product Description
Mini hoist can be used in factories, mines, agriculture, electric power.
Construction building site, dock and warehouse

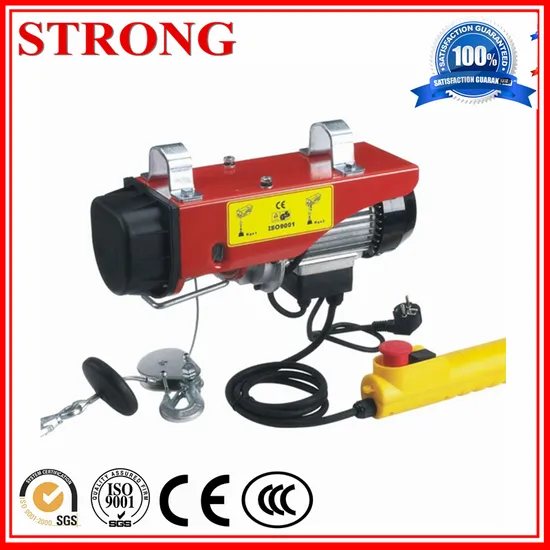

Mini Electric Hoist Features
The PA type of mini electric hoist we produce can be used in factories, mines, agriculture, electric power, construction building site, dock, and warehouse for installing of the machines, lifting the cargoes. Loading and unloading the trucks.
The product we produced is in compliance with the national standard. The design is reasonable, the materials are of good quality, the structure is advanced, the appearance is beautiful and the size is compact, the weight is light, the hand pull force is small and the parts have high strength, big tenacity, and all these make it safe, durable. And the products are popular at home and abroad. It can be compared with the famous brand product in the world.
The main structure
1, lifting motor: the motor is alongside magnetic type one-way capacitance, the insulation class B motor design has stalling the brake alongside magnetic mechanism, the use of safe and reliable.
2, reducer: using secondary reduction gear, gear, shaft adopts high-quality steel manufacturing.After the tempering heat treatment.Motor and reducer constitute an organic whole, adopt the aluminum alloy die casting, compact structure and durable and beautiful.
3, rope drum, chassis: rope cylinder with high qualified steel plate stamping and steel pipe welded together, mounted on the output shaft, rotation wire rope lifting objects.The chassis is made of high qualified steel plate stamping, welding and into.To support the overall hoisting machine and fixed.
4, hook: choose eye hook, hook type rated lifting weight;Choose live wheel hook, double lifting weight.
5, switches, appliance, switch to second button to close the switch.Press up (increased), hand press down (down), reset when to stop.Rising objects to the limit at the same time, stop trip switches, cut off power supply, ensure the safety of operation.
Product details:
Model |
Usage |
Voltage(V) |
Input power(w) |
Capacity(kg) |
Lifting speed(m/min) |
Lifting Height(m) |
Packing dimension(cm) |
GW/NW.(kg) |
PA200 |
Single hook |
220/230 |
450 |
100 |
10 |
12 |
44×38×20 |
24/22 |
Double hook |
200 |
5 |
6 |
PA250 |
Single hook |
220/230 |
500 |
125 |
10 |
12 |
44×37×25 |
25/23 |
Double hook |
250 |
5 |
6 |
PA300 |
Single hook |
220/230 |
600 |
150kg |
10 |
12 |
47×37×25 |
26/24 |
Double hook |
300kg |
5 |
6 |
PA400 |
Single hook |
220/230 |
750 |
200 |
10 |
12 |
52×45×17.5 |
35/33 |
Double hook |
400 |
5 |
6 |
PA500 |
Single hook |
220/230 |
1020 |
250 |
10 |
12 |
52×45×17.5 |
36/34 |
Double hook |
500 |
5 |
6 |
PA600 |
Single hook |
220/230 |
1150 |
300 |
10 |
12 |
53×45×19(2pcs) |
38/36 |
Double hook |
600 |
5 |
6 |
PA800 |
Single hook |
220/230 |
1300 |
400 |
10 |
12 |
53×28×35(2pcs) |
40/38 |
Double hook |
800 |
5 |
6 |
PA1000 |
Single hook |
220/230 |
1800 |
500 |
10 |
12 |
53×28×35(1pc) |
31/29 |
Double hook |
1000 |
5 |
6
|
>>
