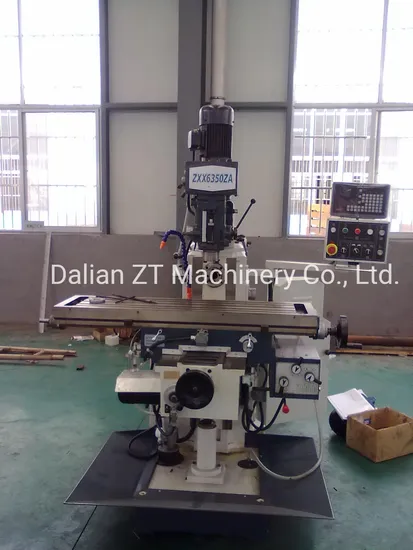

Universal Horizontal Vertical RAM Turret Milling Drilling Machine ZX6350Z

Product Description

Item	ZX6350ZA	ZX6350Z
Max. Drilling dia.	50mm;30mm	50mm;30mm
Spindle taper	M.T.4/R8/ISO30/ISO40	M.T.4/R8/ISO30/ISO40
Max. Vertical milling dia.	25mm	25mm
Max. Boring dia.	120mm	120mm
Max. Tapping dia.	M16	M16
Spindle speeds (Vertical) Spindle speeds (Horizontal)	60-1500rpm(8) 40-1300rpm(12)	60-1500rpm(8) 40-1300rpm(12)
Spindle travel	120mm	120mm
Automatic spindle feeds	0.08/0.15/0.25mm	0.08/0.15/0.25mm
Table size	1250x320mm	1120x280mm;1200x280mm
Table travel	600x280mm	600x260mm
Motor power (vertical) Motor power (horizontal)	1.5kW 2.2kW	1.5kW 2.2kW
Weight of machine	1260kg	1160kg

Features:
3-axis automatic feed
Vertical milling head swivel: ±45°
X-axis: dovetail guideway
Y/Z-axis: square guideway
3-axis lockable
Drilling depth and worktable can be controlled by adjustable stop
Vertical spindle quill automatic feed -3 feed rates
Standard accessories:
16mm drilling chuck shank
ISO40 milling collet chuck
ISO40 milling collet Ø 4,5,6,8,10,12,14,16 mm
ISO40 reducer sleeve / MT3 and ISO 40 / MT2
Cooling system
Chip tray
Tool box and tools
Optional accessories:
Work table swivel ±45°
Optional accessories:
3-axis DRO;
Work table swivel ±45°
FAQ
1. How can I choose the most suitable machines?
A: You can choose the exact model by yourself. Or you can tell us your specifications, to let us choose the best model for you, too.
You can also send us the product drawing, and we will choose the most suitable machines for you.
.
2. When do you deliver?
A: It depends on the machine and model you choose. Mostly 1.5 months - 3 months. All machines are brand new, made according to your order. Occasionally there will be a few machines available from stock. You can send us a message or mail to check exact delivery time.

3. Is machine tested?
A: The accuracy, noisy will be tested according to China GB standard.

4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.

5. What's the Payment Terms?
A : T/T 30% down payment when order ,70% balance payment before shipment ;
Irrevocable L/C at sight also acceptable but it will subject additional bank fee.

6. Do you accept cash or L/C?
A: We accept T/T or L/C, all through banking system. We do not accept cash, 'cause we are an official registered company that all payment must go through official bank account.
7. What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set)
8. How is the warranty?
A: 12 months after shipment date
9. If I have a problem setting up/ getting it running problem, will you be available by email to assist in solving the problem.
A: Video technical support, online service, we can answer you in 24 hours.

---
