Verical Dry Powder Blending Equipment with Dual Screw Agitator

Product Description

verical Dry Powder Blending Equipment with dual Screw Agitator
Questions for Buyer:
Please answer below questions and send answers to email, and then we will send you offer as soon as possible.

1, What materials do you mix? (Names of raw materials?) 2, What is the power fineness (or particle size)? (mesh, mm) 3, What is the bulk density (or specific gravity) of mixed materials? (kg/liter, kg/m3) 4, How many kgs or liters to be mixed per batch? 5, What is the distance from bottom discharge outlet to ground? (cm, mm, m) 6, What construction materials do you require? (Please choose below option) A, all construction materials mild steel; B, contact parts stainless steel, non-contact parts mild steel; C, all construction materials stainless steel;

1 Working principle:

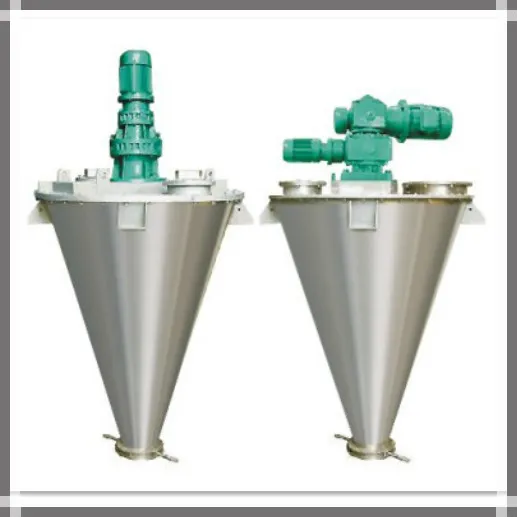

The CMPN series conical Nauta Mixer is comprised of vertical cone-shaped tank, two asymmetric screws, fixed or full-open top cover, arms, transmission unit. Two (single or three) screws rotate along their own central axis, we call this movement self-rotation; the arm drive the two screws rotate along the wall of mixing tank, we call this movement revolution. The self-rotation makes the materials elevated; the revolution makes the materials diffused in the radial; the materials elevated with self-rotation forms two material flows and fall down to fill in the material vacancy
at the bottom; so the triple compound movement make materials homogenously mixed inside the nauta mixer tank.
2 Performance & features:
2.01 Material: stainless steel 304 / 316L or mild steel Q235;
2.02 Surface treatment: paint (mild steel), polish/sandblasting (stainless steel);
2.03 Agitators: shaft with welded screws;
2.04 Mixer tank: vertical, conical tank;
2.05 Shaft: two (single or three);
2.06 Mixing time: 5-30 minutes;
2.07 Working model: batch mixing;
2.08 Speed reducer: cycloid reducer;
2.09 Rotation speed: fixed speed;
2.10 Seal: oil seal;
2.11 Openings: feeding inlet, manhole, and inspection & connection port;
2.12 Discharge valve: manual dislocation (plum blossom) discharge valve;
2.13 Working condition: NPT (normal pressure and temperature);
2.14 Not heavy duty: mixer can not be started with loading materials;
2.15 Power supply: 220V 50HZ single phase/ 380V 50HZ 3 phase;
2.16 Non ex-proof electronics (motor, electronic elements, control cabinet);

3 Optional features:
The following optional features are available: wear-resistant and anti-corrosion materials, surface treatment; single (two or three) screw shafts; continuous mixing; gear box reducer; changeable speed; customized openings and discharge valves; temperature control; pressure requirement; heavy-duty configuration; motors, electronic elements, electronic control panel are customized to different power and ex-proof requirements; light glass; sampling device; liquid spraying device; scrappers etc.

4 Technical specifications:

Mixer model	Working volume (L)	Rotation speed (rpm)	Motor power (kw)	Overall dimension (mm)	Machine weight (kg)
CMPN-50	20-30	2&108	0.75	Φ600×H1200	120
CMPN-100	40-60	2&108	1.1	Φ700×H1500	200
CMPN-300	120-180	2&108	2.2	Φ900×H2000	500
CMPN-500	200-300	2&108	3	Φ1100×H2300	650
CMPN-1000	400-600	2&60	4	Φ1600×H2700	1200
CMPN-2000	800-1200	2&60	5.5	Φ1900×H3400	1550
CMPN-3000	1200-1800	2&60	7.5	Φ2100×H3700	2200
CMPN-4000	1600-2400	2&60	11	Φ2400×H4400	2500
CMPN-5000	2000-3000	2&60	15	Φ2500×H4600	3100
CMPN-6000	2400-3600	2&60	15	Φ2700×H4900	3600
CMPN-8000	3200-4800	2&60	18.5	Φ2800×H5300	4100
CMPN-10000	4000-6000	2&60	22	Φ3000×H5600	4500
CMPN-12000	4800-7200	2&60	22	Φ3100×H6000	4800
CMPN-15000	6000-9000	2&60	30	Φ3400×H6600	5100
CMPN-20000	8000-12000	2&60	45	Φ3700×H7100	6200
CMPN-25000	10000-15000	2&60	55	Φ3900×H7500	7300
CMPN-30000	12000-18000	2&60	75	Φ4200×H8000	8500

5 Mixers Album:
6 Application Industry:
7 Factory Album:

---
