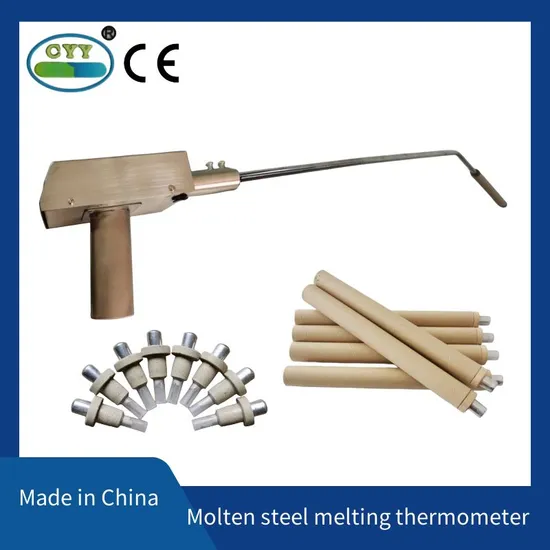

High Precision Molten Steel Melting Thermometer for Measuring The Temperature of Molten Metal

Product Description

Product Description
Abstract:
The thermometer is based on a high speed 16 bit embedded microprocessor. An automatic calibration circuit is used to measure the temperature of the cold end with a precise temperature sensor, and can be corrected by software. The high precision AD conversion chip is used in data acquisition, and the sampling period is 20ms, which has strong anti-interference to the power frequency of space.
The thermometer can be used to measure the solution temperature in steel, copper, cast iron and other industries, and can also measure the slag temperature.
Product Parameters

thermocouple	S	B	R	WRe3/25
Rapid temperature measurement range	800~1769ºC	800~1820ºC	800~1769ºC	800~1999ºC
Continuous temperature measuring range	200~1769ºC	500~1820ºC	200~1769ºC	200~1999ºC
Mode of display	Four highlighted LED display, 15 mm high
Working environment	Temperature 0~55ºC; Relative humidity <85%
Storage environment	Temperature -40~85ºC; Relative humidity <95%
Power source	Internal with rechargeable battery, rated battery voltage 5V

Description of function
1, After the measurement is finished, the buzzer prompts
2, Battery voltage detection, battery power display
3, Four highlight LED display, word height 15mm
Detailed Photos
Installation Instructions
Panel description and operation
There are two measurement indicators on the panel: ready, end; An LED display;
When there is no thermocouple input, the instrument will automatically shut down after two minutes of idle, and automatically save the temperature value displayed during shutdown, and automatically display the temperature value when power on.
Application field
Certifications
