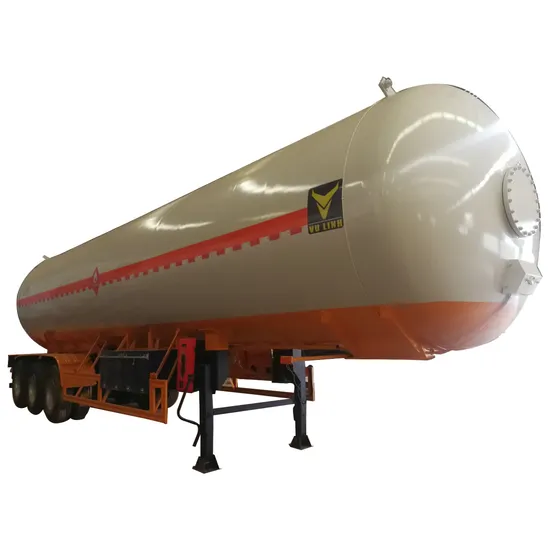

Tri-Axle 56m3 58.5m3 60m3 LPG Gas Trailer with ASME Certification

Product Description

lpg tank trailer
Product information

No

Produce Model

Type

Wheelbase

overall size(mm)

tank size(mm) DN*tank thickness*length

head type and thickness

tank capacity

Medium

filling

design pressure

payload

curb weight

total weight

material

1

CLW9401GYQC

3 axles

7010+1310+1310

13590*2550*4000

2525*10*13230

double ballδ8

61.9

propane

0.42

1.61

26000

14000

40000

Tank:Q420R end:Q345R

2

CLW9408GYQB

3 axles

7230+1310+1310

13000*2500*3990

2478*11*12791

double ellipseδ11

59.53

propane

0.42

1.61

25003

14997

40000

Q345R

3

CLW9409GYQ

3 axles

7092+1310+1310

12900*2500*3977

2475*12*12607

double ellipseδ12

58.5

propane

0.42

1.61MPa

24570

15430

40000

Q345R

4

CLW9390GYQA

3 axles

6865+1310+1310

12700*2500*3975

2450*12*12340

double ellipse δ12

56

propane

0.42

1.61MPa

23520

15480

39000

Q345R

5

CLW9390GYQA

2 axles

6800+1310+1310

12950*2500*3980

2450*11.5*12720

double ball δ8

56

propane

0.42

1.61

23520

15480

39000

Q370R

6

CLW9380GYQ

3 axles

6800+1310+1310

13000*2500*3980

2450×11.5*12305

double ball δ8

54

propane

0.42

1.61MPa

22680

15000

37680

Q370R

7

CLW9360GYQ

3 axles

6800+1310+1310

12740*2480*3800

2300×12×12372

double ellipse δ12

40.5

propane

0.42

1.61MPa

20832

15300

36132

Q345R

8

CLW9310GYQ

2 axles

6720+1320

13240*2500*3730

2200×12×11044

double ellipse δ8

40.5

propane

0.42

1.61MPa

17010

13415

30425

Q345R

Standard configuration:Single outlet, double side loading and unloading, double valve box, double toolbox, safety valve, thermometer, pressure gauge, emergency cut-off valve, 13T BPW axis, 12R22.5 tire, one spare tire, JOST leg, JOST traction pin, fire extinguishing bottle, anti-static grounding, plastic fender

Company information
1. ChengLi Special Automobile Co.,Ltd, which was appointed by the Development and Reform Committee of China, is a famous manufacturer producing all kinds of special trucks for municipal & environmental construction, virescence, petrol & medicals, container, and semi-trailer. Brands registered include CLW .Our company has independent export right and has a mount of clients in overseas. Our leading varieties include more than 100 types of trucks and related products such as water truck, garbage truck,sewage suction truck, fuel tank, high-altitude operation truck, truck mounted crane, dump truck, LED advertising truck,LPG truck/trailer,LPG filling tank, van truck, semi-trailer, fire engine, refrigerator truck, tractor, bulk cement truck, chemical liquid truck, concrete mixer truck, and others.

2.Our company has solid technology, flawless inspection, advanced equipment, reliable quality and flexible modes of operation. What's more, our company has roundly passed ISO9001:2000 and CCC (China Compulsory Certification) certifications. Series trucks of Cheng Li have procured remarkable achievements interiorly, especially from the investment in South Suburb Cheng Li Automobile Industry Park.

3.Quality control:our company truck pass ISO,3C,ASME certification.
our factory have the quality Quality Inspection Department.before sending truck for facotry ,our quality inspection department will check the truck carefully.

4. Export market: Africa,Asia,South America,Pacific and so on

5.Our company cooperate with famous chasis manufacturers,such as DONGFENG,SHINOTRUK,FOTON,ISUZU JAC,JMC ,SHACMAN,FAW and etc.

6.Factory Show:

Service
1.We can product truck accroding the customer's requirments(color,size,logo and so on)
2.We can send our technician to arrive the customer's country to provide the service .
3.We can train customer's workers for free.
4.Our truck warranty:12 months.we can provide the parts for free at the frist year.

Success Case Show
Customer Visit
FAQ

1.Payment term.
-T/T,30% deposit ,and pay the blance before shippment from our factory
-L/C,L/C price is expensive than T/T price.

2.What about quality ?
Our truck are brand new truck,Our survival is based on quality and credit standing is the guarantee of our success. We will do as we can to treat customers honestly, manage flexibly, guarantee high quality but low price, and keep high efficiency.
our company truck pass ISO,3C,ASME certification.

3.Visit our factory
Our factory are in suizhou city,hubei province china.
You can take train or plane to arrive wuhan citry(wuhan city is the capital of hubei province) .and our driver will pick up you at wuhan railway station or wuhan tianhe airport.
And if need the invitation letter ,pls send your private information and company information to me.
