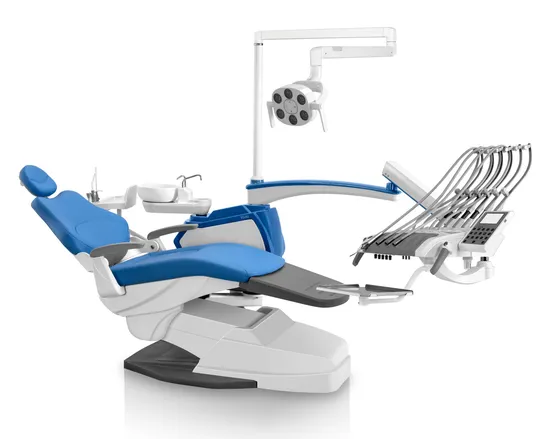

CE ISO Approval Hospital Movable Luxury Top Memory Dental Clinic Dentists Chair

Product Description

Features & Advantages:
1. With massage, heating function 2. 5"Color LCD touch screen display 3. 90 °Rotary unit box. 4. Luxury top mounted tool way with 9 memory program,Suitable for 3 dentist. 5. Genuine leather cushion.service life is more than 5 years. 6. 6 bulbs LED sensor dental light 7. Detachable Metal Backrest with brand new chair frame 8. Casting silicon base,strong and durable
Standard configurations:

1	24v silence Taiwan motor	1 set
2	3-way syringe (cold/hot)	2 pcs
3	Water heating system	1 sets
4	Luxury LED lamp	1 pcs
5	Saliva ejector (strong and weak)	1 set
6	LED film viewer	1 set
7	Purified water storage system	1 set
8	Luxury up-mounted tool tray	1 set
9	Rotary ceramic spittoon	1 set
10	Double armrest	1 set
11	Assistant control system	1 set
12	Micro fiber cushion	1 set
13	Multi-function foot pedal 6 in 1	1 set
14	Silent Castor Dentist stool	1 set
15	Painting steel base	1 set
16	Imported water & air tubes	1 set
17	Italy solenoid valve(ODE)	1 set
18	Message heating function	1 set
19	Memories systems	3 sets
20	Luxury handpiece tubes	1 set
21	Germany Weak & strong suction tube	1 set

Parameters:
Environment temperature: 5°C to 40°C
Related humidity: ≤ 80%
Power supply :~110-220V ± 10%; 50Hz ± 10%
Air pressure: 400-600kPa
Water pressure: 200-400kPa
Bearing capacity of the chair: ≤ 135 KG
Options:
Imported 2/4-hole high speed handpiece/ made in China
Imported 2/4-hole low speed handpiece/ made in China
Ultrasonic scaler
Intra Oral Camera with monitor
Built in/ built-out LED Curing light
Oil-free air compressor
More detail picture for you reference;
Show us:
Dental clinic piping requirements
1.Water supply pipe: white PPR Fusion Tube, reserved 4 points copper internal tooth interface (PPR Fusion Tube is
recommended, 4 points internal and external tooth straight through valve)
2.Air supply pipe: white PPR Fusion Tube, reserved 4 points copper internal tooth interface(PPR Fusion Tube is recommended,
4 points internal and external tooth straight through valve )
3.Drainage pipe: White PVC drain pipe, main pipe 17mm,branch pipe φ50mm.
4.VGA video screen and USB data cable: white PVC threading pipe φ 32mm, leaving a wire to be threaded in the future;
5.Negative pressure pipe: blue UPVC water supply pipe, outer pipe outer diameter φ50mm,branch pipe outer diameter φ 32mm, access to the outer diameter of the dental chair tube25 25mm.
6.Negative pressure signal line: white PVC threading tube, 4 points φ20mm) sleeve2*1mm2 line;
7.Power cord: white PVC threading tube, 4 points (φ 20mm) sleeve 3*1.5mm2 line; Note: Straight angle joints
cannot be used at the drain and negative pressure pump connections, and 45 degree joints are used.
The water purifier water supply and the air compressor inlet air must be reserved for the switch.
Our company reserves the right to make any improvement on product design without advance notice.
Contact person: Allen Song

---
