Full Automatic Hook Winding Machine with Taping Function

Product Description

Specificaton

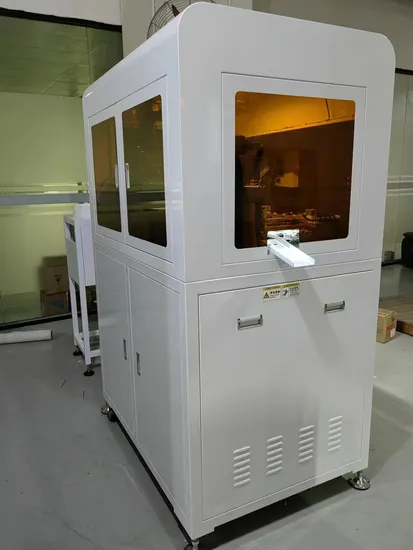

GWA-70HM Multi-purpose Full Automatic Hook Winding Machine

No.	Item category	Value
1	Equipment model:	GWA-70HM
2	Adapt to the magnetic ring (outer diameter):	14mm-45mm
3	Adapt to wire diameter:	0.5mm-2.0mm
4	Length of unilateral line:	1200mm
5	Winding speed:	Depends on wire diameter and number of coils
6	application winding method:	conventional winding method / forward winding
7	Power supply:	220V/50Hz single-phase alternating current
8	Air source:	0.55Mpa-0.60Mpa
9	Noise:	60 decibels
10	Equipment power:	3KW
11	Equipment power:	0.55°/hour
12	Operating ambient temperature:	-5°C~40°C
13	Relative humidity:	(40~90)%RH
14	Comprehensive pass rate:	99.5%
15	Dimensions:	length 1750mm (including belt line) * width
16	Machine weight:	500KG

Machine Configuration List

No.	Name	Brand	Unit	Quantity
1	Equipment cover sheet metal parts	Non-standard Custom	SET	1
2	Machined Parts	Non-standard Custom	SET	1
3	Magnetic ring feeding vibrating plate,belt line part	Non-standard Custom	SET	1
4	Guide rail screw	Top Silver	SET	1
5	Servo motor	Inovance	SET	8
6	Pneumatic Components	Airtac	SET	1
7	PLC	Xinjie	SET	1
8	Touch Screen	Xinjie	SET	1
9	Photoelectric Sensor	(OMRON)	SET	6
10	Design and processing cost of magnetic ring fixture	Non-standard Custom	SET	1
11	Software System	Non-standard Custom	SET	1

Taping function
This machine is designed for taping the tails of thick wires.
It can protect the magnetic core very well and prevent damage to the wire. The quality is stable.
The scope of application is as follows: Wire diameter:1.5-2.5mm Core:25-53mm Wire length:200-1500mm Speed:1.0-1.5s/turn Auxiliary time: 10-15s/pcs Detailed Photos
Application

Toroidal Winding Machine Application:
Company Profile
Grewin Industrial Group Co., LTD, founded in 1993, is one of China's largesttoroidal winding machine manufacturers.
Widely used in toroidal transformer, current transformer, sensor, inductor manufacturing and other related industries.
Our team always adheres to the concept of serving customers and meeting customer needs, and has won unanimous praise from customers.
Certifications

Our Team with Customers

Packaging & Shipping
Packaging Material: Carton/Wooden case with foam inside.
1.General package(Paper carton or plastic bag): For small euipped parts for ToroidalTransformerWindingMachine
Package it with form and pack paper to guarantee unbroken during the transport.
2.Wooden case package: For larger scale Toroidal Winding machine ,we have special skilled carpenter, who would make the proper wooden case with exact thickness,density,length. The up arrow ↑marked on the outer wooden case. Buffer material would be put in the wooden case to prevent crack and shock.
After -sales service:
PRE-SALE:
1. Strong and professional team of engineers, rich experience
2. Able to provide innovative solutions and quotes in one day
IN SALE:
1. Delivery time: 5-10 days(standard machine), 30 days(custom )
2. Free consulting service: in-depth understanding of customer needs
3. Provide professional advice: including the choice of parts type and consumable parts of the machine.
AFTER-SALE:
1.24 hours free remote service: video guide and telephone
2. Warranty:1 year after-sales service

---
