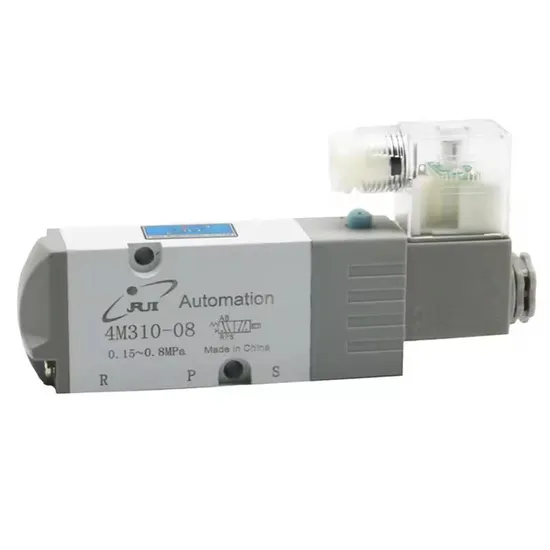

1/4′′ 4m310-08 5/2 Way 5 Port 2 Position Namur Interface Pneumatic Actuator Air Control Solenoid Valve

Product Description

Features:
1. Internally piloted structure.
2. Structure in sliding column mode: good tightness and sensitive reaction.
3. Double control solenoid valves have memory function.
4. Internal hole adopts special processing technology which has little attrition friction, low start pressure and long service life.
5. No need to add oil for lubrication.
6. Install in the side plate with the surface upward, which can be used by directly connecting with the actuators.
7. Affiliated manual devices are equipped to facilitate installation and debugging.
8. Several standard voltage grades are optional.

Model	4M110-M5 4M120-M5	4M110-06 4M120-06	4M210-06 4M220-06	4M210-08 4M220-08	4M310-08 4M320-08	4M310-10 4M320-10	4M410-10 4M420-10
Working Medium	Clean air (40μm filteration)
Operation	Internal Guide
Port Size	Import=M5 Export=M5	Import=1/8 Export=1/8	Import=1/8 Export=1/8	Import=1/4 Export=1/8	Import=1/4 Export=1/4	Import=1/4 Export=3/8	Import=3/8 Export=3/8
Sectional Area	5.5mm² (CV=0.31)	12mm² (CV=0.67)	14mm² (CV=0.78)	16mm² (CV=0.89)	25mm² (CV=1.39)	30mm² (CV=1.67)	30mm² (CV=1.67)
Working Pressure	0.15~0.8MPa
Max. Working Prressure	1.2MPa
Working Temperature	-5~60ºC
Voltage Range	-15%~10%
Heat Resistance Grade	B Grade
Protection Grade	IP65(DIN40050)
Coil Type	Flying Leads/Din Type
Max. Acting Frequency	4 Time/S

Ordering CodeOverall Dimensio

---
