US$253,500.00-260,000.00
|
1 Set
(MOQ)
|
Basic Info.
Usage
Concrete Curb, Granite, Marble
Application
Machinery & Hardware, Construction, Stone Industry
Cutting Ability
High Speed
Applicable Industries
Building Material Shops, Manufacturing Plant
Transport Package
Plastic Packing
Specification
7800*4800*6580MM
Origin
Putian, Fujian, China
Production Capacity
50 Pieces/Month
Product Description

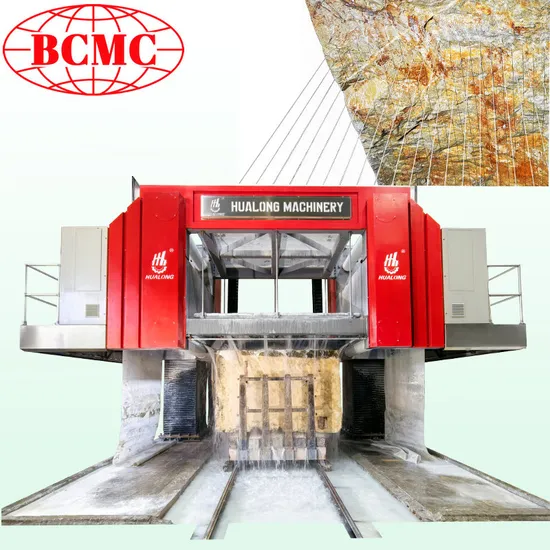

Super Thin Multi Wire Saw Machine
HLMW-100/150 Super Thin Multi Wire Saw, an amazing new machine developed by HUALONG Machinery defining the next generation stone block cutting technology, with 0.3-0.8mm thin diamond wire brings yield rate more than 97%. It's the next machine of yours to cut block to slabs for much more benefits as follows:
Main Features:
1) High yield - Tiny wire saws with only 0.4-0.7mm cuting grooves enable a yield of over 97%, 15-20% higher than conventional ones
2) Emission Reduction of Stone Powder: over 90%
3) Noise reduction - No vibration, reduce noise over 40 dB
4) Ultra thin slabs below 10mm can be produced
5) High precision prevent wire marks and improves the slab flatness by 50%
6) Space saving - reduce equipment footprint by more than 30%
Technichal Data for HLMW-100/150
|
Diameter of diamond wire
| mm
| 0.3 - 0.8
|
Max. volume of wire stored
| km
| 30 / 50
|
Operating line speed
| m/s
| 25 - 40
|
Thickness of slabs cutted
| mm
| 5 - 30
|
Max. number of cutting pieces
| piece
| 100 / 150
|
Max. processable size of block
| mm
| 3500x2100x2100
|
Max. spindle speed
| rpm/min
| 3000
|
Main motor power
| kw
| 60
|
Gross power
| kw
| 310
|
Dimensions (LxWxH)
| mm
| 7800x4800x6580
|
Wire roller 30 km or 50km super thin diamond wire can be stored per roller. Each 800m to 1000m wire is released for cutting and cutting...passivated, and then another length of 800m to 1000m new wire is released for cutting
| |
| Electric Control Cabinet INOVANCE advanced multi-machine drive inverters and servo system complete solution are adopted to secure smooth and reliable performance
|
Console Visual human-computer interactive operating system, clear at a glance, easy to use.
| |
Super Fine Multi Wire Saw Machine
* Output: 90 pcs/m for 1.08cm thick slabs * Rate of Output: 98.2%
* Emission Reduction of Stone Powder: 90%
* More smooth surface cutted
