The Manufacturer Directly Supplies Four Roll Metal Bending Machines

Product Description

The manufacturer directly supplies four roll metal bending machines Keywords:bending roll machine,cnc plate bending machinery,cnc rolling machine,hydraulic rolling machine,metal rolling machine,plate bending machinery,plate bending roll,plate rolling machine,roll bending machine,roll bending machine,sheet rolling machine

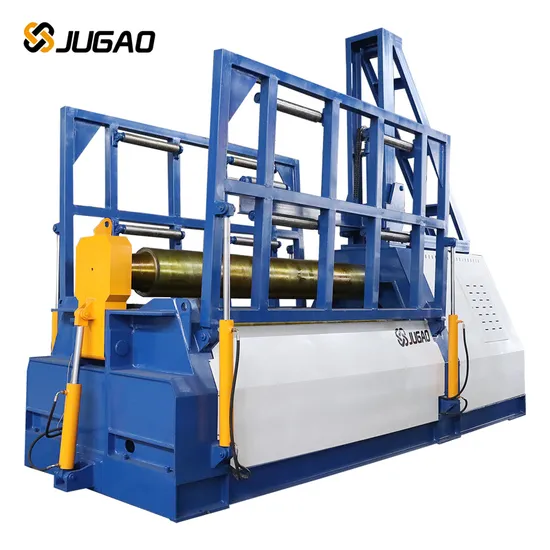

4 rolls plate rolling machine, driven by the top roll, single unit high torque hydraulic motorand planetary gear box are directly mounted onto each driving roll to ensure a smoothfeed through of the plate, the bottom roll can be vertically moved to clamp the plate, theside rolls move up and down on planetary swing guides, all four rolls uses pherical rollerbearings, the advantage of this machine is that it can complete the pre-bending of bothends and rolling at one time. it can also perform certain shaping and leveling on the metalsheet, and smallest flat ends.
Characteristics:
1. CNC independent operation system designed by ourself can be used for rolling differ-ent shapes, such as round, elipse, multi-section curvature arc etc. Which is easy to learnand operate.
2. Top roller is driven by hydraulic motor and planetary gear box, bottom and side rollersare driven by hydraulic cylinder.
3. Frames are made of fully welded steeland stress relieved before machining to have su-fficient strength to absorb bending forces and to achieve highest possible accuracy.
4. There are two kinds of treatment methods of working rollers, first quenching and temp.ering to make strength reach HB260-300, then quenching to hardness reach HRC45-55adopts second-level flaw detection standards.
5. Equipped with electronic synchronization system, when rollers move up and down, ba-lance is synchronized and compared, and there is a working balance at the end, no offset.easy operate,high precision.
6.Permanent lubrication technology (no oil needed during bearings life).7.Adjustable clamp pressure(no slipping, productivity is 50%-80% more than 3 roll).8. Convenient material alignment, one-phase forming, easy rolling of large taper cone. lt isconvenient to correct the wrong side.
Product parameters

Specification	Max roll thickness(mm)	Max roll width	Yield strength	Roll speed	Min roll diameter	Diameter of upper roller	Diameter of down roller	Diameter of side roller	Motor
		(mm)	(Mpa)	(m/min)	(mm)	(mm)	(mm)	(mm)	(kw)
W12-25X2000	25	2000	245	4	800	350	320	240	22
W12-20X2500	20	2500	245	4	640	350	320	240	30
W12-30X2000	30	2000	245	4	1000	400	360	240	37
W12-25x2500	25	2500	245	4	800	400	360	240	37
W12-35x2000	35	2000	245	4	1200	420	380	210	37
W12-30X2500	30	2500	245	4	1000	400	360	230	37
W12-40X2000	40	2000	245	4	1400	480	400	420	45
W12-45X2000	45	2000	245	4	1600	500	450	380	45
W12-35X2500	35	2500	245	4	1200	480	400	420	45
W12-40X2500	40	2500	245	4	1400	500	450	380	45
W12-45X2500	45	2500	245	4	1600	530	480	450	63
W12-35X3000	35	3000	245	4	1200	500	450	380	45
W12-45X3000	45	3000	245	4	1600	560	500	450	63
W12-55X2500	55	2500	245	4	2000	600	550	500	75
W12-55X3000	55	3000	245	4	2000	620	560	500	75
W12-65X3000	65	3000	245	4	2400	670	600	550	110
