Lab Vacuum Film Deposition Plasma Coating Machine Manufacturer

Product Description

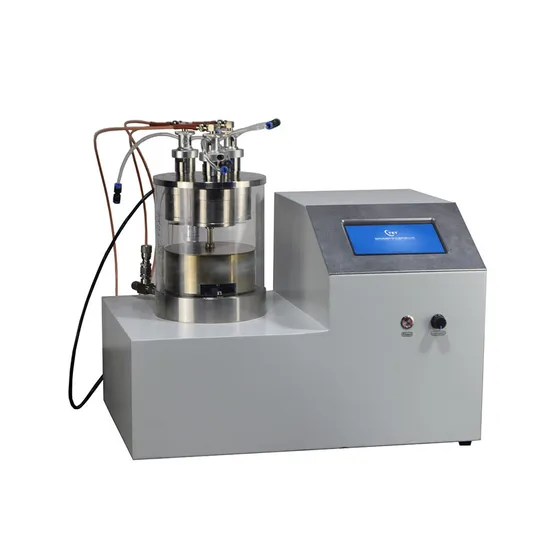

Lab Vacuum Film Deposition Plasma Coating Machine Manufacturer
Product Description
1. This type of small plasma sputtering coating machine adopts single-stage sputtering method, which is widely used for SEM
sample preparation or metal coating experiment.
2. Using low-temperature plasma sputtering process, there is no high temperature during the coating process, thermal damage is
barely happen.
3. This small plasma sputtering coater uses PLC +touch screen control system, easy to operate. a rotatable sample stage is
equipped.
4. This small plasma sputtering instrument uses a PLC +tounch screen control system, easy to learn and operation.
5. It comes with small size, suitable for lab research process.
Product Parameters
Specifications of plasma sputter coater:

Product model	TN-PLZ180-III-DC-Q
Sample stage	Size	100mm
	Rotating speed	1~20rpm adjustable
Plasma sputtering source	Quantity	2-inch*3
Vacuum chamber	Chamber size	φ180mm x 210mm
	Observation window	Omnidirectional visibility
	Chamber material	High purity quartz
	Open method	Top cover removable
	Upper and lower cover material	304 stainless steel
	Pumping port	KF16
	Intake port	1/4 inch ferrule connector
Power configuration	Quantity	DC power supplyx1
	Output power	Max. 150W
	Sputtering power	1200V
	Max. sputtering current	50mA
Vacuum system	Vacuum pump type	Dual-stage rotary vane vacuum pump
	Pumping port	KF16
	Exhaust interface	KF16
	Pumping rate	1.1L/s(4m3/h)
	Ultimate vacuum	≥0.1Pa
	Vacuum measurement	Resistance vacuum gauge
Others	Power supply	AC 220V 50Hz
	Total power	1.5kW/2kW
	Dimension	500mm x 320mm x470mm
	Weight	30kg

Detailed Photos

1. We have plasma sputtering coater 1/2/3 targets
2. Substrate rotary, lifting, heating is optional
3. 150W, 300W, 500W DC or RF power supply is optional
Company Profile
Zhengzhou Tainuo Film Materials Co., Ltd. is a comprehensive company integrating design, research and development, production and sales.
Our company's main products are: spin coater, thermal evaporation coater, magnetron sputter coater, plasma sputter coater, E-beam evaporation coater, PLD pulse laser coating machine, plasma cleaner, CVD system, PECVD system, diamond wire cutting machine, melting furnace/stove, arc melting furnace, etc.
Our products are widely used in the field of materials science research. We have extensive cooperation with domestic universities, laboratories, and new material companies. It has been successfully exported to more than 20 countries and regions including the United States, the United Kingdom, Germany, Russia, Switzerland, Canada, Brazil, etc. and have established long-term cooperative relationships with local dealers.
If you are conducting materials research, please contact us and we will provide you with customized services to make your research experiments smoother!

Packaging & Shipping
We can ship the plasma sputter coater by sea, by air, by land, b Express, also can arrange shipment according to your requirement.
FAQ
Q. Are you manufacturer or trading company?
A. We are professional manufacturer of laboratory instruments, We have professional R&D team and workshop, which can
promise the qulaity and after-sale service.
Q. How's your warranty?
A. Our warranty is 12 months, and provide lifetime maintenance. We provide 24 hours on-line service.
Q. How long is your delivery time? If I want to customize the instrument, how long does it take?
A. 5-10 days----in store. Customzied products---It usually takes 30-60 days depending on your requirements.
Q. Power supply and plug?
A. We can provide products accroding to your local voltage and plug standard.
Q. How to pay?
A. TT, L/C, D/P, etc.
Q. How is the package of goods? Delivery methods?
A. Standard export fumigation sign wooden box packaging or as your requirements.

---
