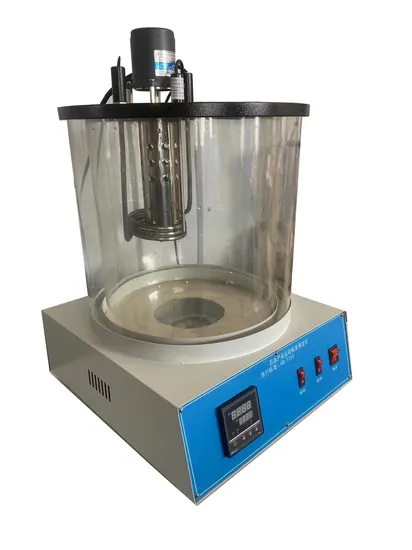

Kinematic Viscosity Tester and Apparatus Oil Viscosity Meter

Product Description

Basic Info

Model NO.	Chorus EI-03	Test Standard	GB/T 265
Density Meter Type	Kinematic Viscometer	Input Power	<1850W
Power Source	AC 220V±10% 50HZ	Auxiliary Heating Power	800W
Main Heating Power	1000W	Temperature Control Accuracy	±0.1ºC
Temperature Control Range	40~100ºC	Number of Viscometer Holders	4 Sets
Capillary Types	Capillary Viscometer (Pinkevitch Method)	Capillary Specifications	Φ0.8,Φ1.0,Φ1.2, Φ1.5,Φ2.0,Φ2.5.
Language	English	Origin	China
Trademark	Chorus	Delivery	10-15days
Transport Package	Plywood / Wooden Case	HS Code	9031809090
Weight	About 12kg	Specification	320mm×370mm×530mm

Summary
BF-03 kinematic viscometer is designed and manufactured in accordance with the standard of GB/T 265, capable of accurately carrying on the determination of kinematic viscosity of petroleum products strictly according to standard description.
BF-03 kinematic viscometer is applicable to the determination of kinematic viscosity of liquid petroleum products(Newton fluid), its unit is mm2/s.
BF-03 kinematic viscometer has the features of elegant appearance, reasonable design structure, ease of use and accurate measurement.
Standard Description
Under certain constant temperature, measure the flowing time of certain volume liquid, which flows past certain distance in the glass capillary viscometer in gravity, this flowing time multiplied by capillary constant of viscometer becomes kinematic viscosity of the liquid under that temperature.
Apparatus Installation
1.Carefully remove wrap after unpacking apparatus, check apparatus accessories against package list and make sure they are complete and undamaged.
Note: If apparatus accessories incomplete or damaged, please contact our company in time.
2.Steadily place bath vessel and heat preservation cover between base and upper cover, regulate apparatus foundation bolts and turn upper cover of constant-temp heating bath to horizontal state.
3.Connect power source of each part of apparatus.
4. After installing constant-temp heating bath successfully, fill it with medium.
Note: The medium inside constant-temp heating bath must be filled higher than heating pipe to avoid "burn in air".
5.Turn on power source, set the needed temperature of constant-temp heating bath and make sure motor operates normally.
Caution: Upon turning on power source, temperature control system starts operating, so power source can only be turned on after the constant-temp heating bath filled with medium.Package list
Chorus EI-03 kinematic viscometer GB/T 265

Documents Accompanied and Accessories
Serial No.	Name	Specification and Model	Unit	Quantity
1	Certificate of Approval and Instruction Manual		copy	1each
2	Mainframe			1
3	Thermometer	18~22ºC,38~42ºC,48~52ºC,78~82ºC,98~102ºC		1each
4	H Light			1
5	Tube fuse	15A		2
6	Capillary	Φ0.8,Φ1.0,Φ1.2,Φ1.5,Φ2.0,Φ2.5		1each
7	Capillary Holders		set	4

Packing
The glass parts will be wrapped with foam,then put into the carton; the mainbody portion will be packed in wooden cases;
Packing Specifications:400mm×450mm×650mm

---
