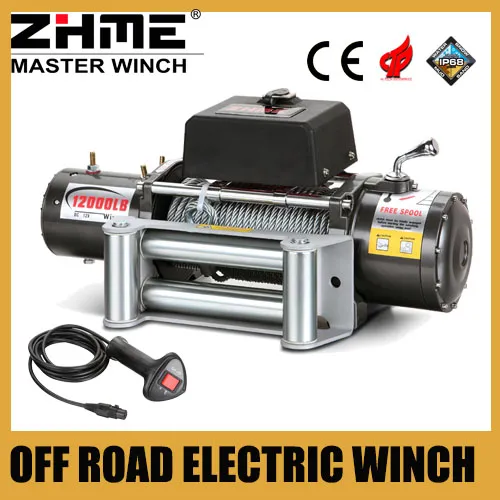

12000lbs Power Winch with Stability Solenoid

Product Description

Features:
1. Popular series winches with good quality at a very competitive price
2. The best choice for off road newcomer.
3. 12V volt high performance series wound motor for power and fast line speed.
4. High-efficiency, lower noise steel 3-stage planetary gears.
5. Low noise, reliable & stable performance braking system.
6. Aircraft grade wire rope, or synthetic rope is optional.
7. Remote switch & wireless remote control being alternative.
Specification:

Rated line pull:	12000Lbs (5443kgs) single line
Motor:	Series wound 6.0 hp /4.4 kw,12V DC
Gear Train:	3 stage planetary
Gear ratio:	265:1
Clutch:	Sliding Ring gear
Braking action:	Automatic in the drum
Fairlead:	Roller fairlead for wire rope
Wire rope:	9.5mm×25m
Drum size:	2.5"×8.9"(64mm×226mm)
Dimensions:	21.6"×6.3"×8.6"( 548mm×160mm×218mm)
Mounting bolt pattern:	10"×4.5"(254mm×114.3mm)
Battery:	Recommended 650 CCA minimum for winching 25 square mm,72"(1.83m)
N.W:	93 lbs (42kgs)
Packing:	620mmx200mmx390mm(420pcs per 20' container)
Line speed and motor current (first layer)
Line pull	Lbs	0	4000	6000	10000	12000
	Kgs	0	1814	2722	4536	5443
Line speed	FPM 12V	23	12.5	9.8	6.9	5.6
	FPM 24V	32.8	30	18	10.5	8.9
	MPM12V	7	3.8	3	2.1	1.7
	MPM24V	10	7	5.5	3.2	2.7
Motor current	Amps12V	80	170	210	310	360
	Amps24V	45	70	95	185	240
Line pull and cable capacity
Layer of cable		1	2	3	4
Rated line pull per layer	Lbs	12000	9900	8300	7000
	Kgs	5443	4490	3765	3175
Cable capacity per layer	Ft.	17.6	37	63	85
	M	6	13	22	26

Shipping Service:
We can arrange you transportation, we have our own shipping and express company, or we can use your forwarder.

How to choose a ZHME Winch for your vehicle
Can't decide which winch is right for you? The best way to choose is to calculate the line pull needed for the application. To do this multiply your vehicle's Gross Vehicle Weight (GVW) by 1.5 - this will give an approximation for how big your winch should be. Typically, the first layer of rope around the drum is the max load the winch is capable of. Each additional layer deducts about 10% off the rated line pull. So for a winch rated 9,500lbs, the second layer will pull 8,550lbs, the third 7,700lbs, etc. A loss of pulling power can also be experienced when the rope isn't spooled evenly on the drum. So re-spool your winch before you go out!

---
