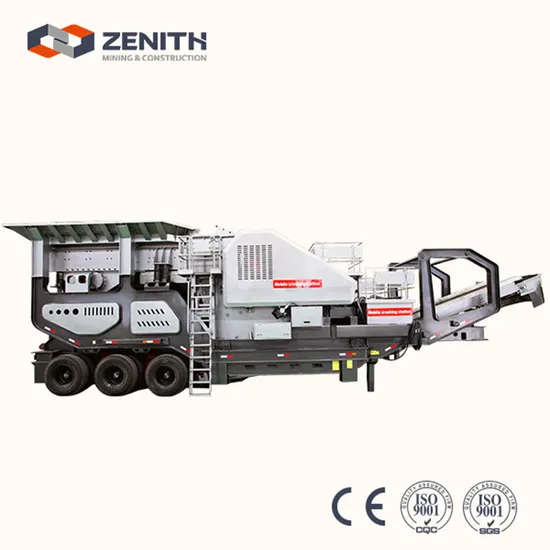

Stone Crusher Plant, Portable Stone Crusher (KF1214-2)

Product Description

Stone Crusher Plant , portable Stone Crusher

Stone Crusher Plant is equipped with a high-quality jaw crusher and a vertical shaft impact crusher, there are eight types of jaw crushers and four types of vertical shaft impact crushers for client to choose from. The PEW and HJ series jaw crushers adopt the world's most advanced crushing technology and manufacturing level, boasting stronger crushing ability and larger crushing ratio.

The PFW series vertical shaft impact crushers feature a good cubic outline, free of tension or crack. To efficiently crush hard and strong abrasive materials, you should first select the PEW series Euro-style jaw crushers. The largest feed size can be up to 1100×1200 mm and the maximum crushing capacity can reach 650 t/h.

The HJ series high-energy jaw crushers feature larger crushing ratio, higher production capacity and lower operation cost, with the crushing strength up to 320 MP, suitable for all kinds of materials. Especially when such hard materials as basalt are treated, the HJ series high-energy jaw crushers can achieve larger crushing force by changing the position of the adjusting seat, so that hard materials could be effectively crushed, with the maximum crushing capacity up to 650 t/h.

Feature of Stone Crusher Plant , portable Stone Crusher
Equipped with a large jaw crusher main engine device, boasting a large crushing ratio and a pioneering crushing force.
Effective and reliable HJ series high-energy jaw crushers.
Compact frame chassis, able to shorten the transportation length.
From single application to multiple-in-one application.
Global on-site customer service.
The preliminary screening function enables the complete set to have a more powerful capacity.
Adaptive main engine device switchover can meet customers' personalized needs.
Flexible parking function, quick access to the working mode.

Extended function - impact and cone crusher exchange system

The same kind of vehicle body can be commonly used by several models; Flexible crushing unit exchange system and screening unit exchange system - mere investment in stand-alone equipment can realize exchange of different feeding units and between impact and jaw crushers on the same vehicle body in a short period of time. The complete set has its all systems perfectly matched, able to adapt to wider occasions, achieve more comprehensive crushing functions and maximize customers' benefits.

Technical specifications/Download of Stone Crusher Plant , portable Stone Crusher

K-series Stone Crusher Plant is released by the elite R & D team after decades of unremitting efforts. K-series Mobile Crusher, including seven modules and a total of 72 types, are able to be widely used in such phases as coarse crushing, intermediate crushing, fine crushing, ultra fine crushing, sand-making sand washing, sand shaping and screening in fields of metal mines, building aggregates and solid waste treatment, etc. Also they are able to meet customers' requirements for diversification, high quality and high production capacity, and committed to providing customers with comprehensive and systematic integration solutions.

Model	Specs. of screening equipment	Specs. of crushing equipment	Specs. of main belt conveyor	Max.feeding size (mm)	Transportation dimension(mm)
KC75-2	3Y1848	CS75B	B800×7.5m	150	12600×3000×4500
KC160-2	3Y1860	CS160B	B800×8.5m	205	13800×3000×4500
KT100-2	3Y1848	HST100H1	B800×7.5m	185	12600×3000×4500
KT160-2	3Y1860	HST160H1	B800×8.5m	185	13800×3000×4500
KT250-2	3Y1860	HST250H1	B800×8.5m	215	13800×3000×4500
KH300-2	3Y1860	HPT300C2	B800×8.5m	210	13800×3000×4500
KF1214-2	3Y1860	PFW1214III	B800×8.5m	250	13800×3000×4500
KF1315-2	3Y2160	PFW1315III	B1000×8.5m	300	13800×3150×4500
KF1318-2	3Y2160	PFW1318III	B1000×8.5m	300	13800×3150×4500
KS1848-1	3Y1848	--	B800×7.5m	--	12590×3000×4500
KS1860-1	3Y1860	--	B800×8.5m	--	13800×3000×4500
KS2160-1	3Y2160	--	B1000×8.5m	--	13800×3000×4200

---
