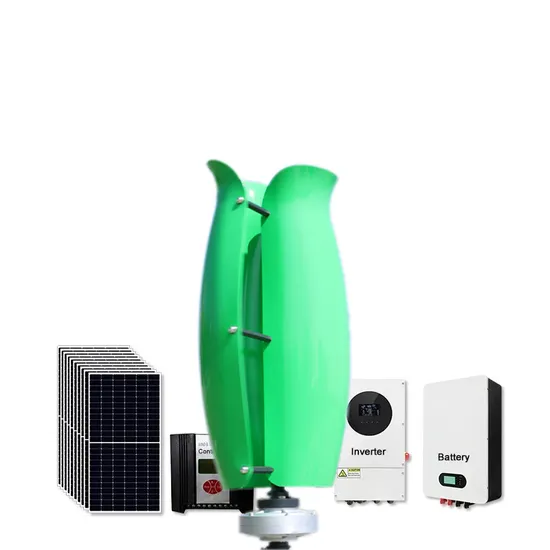

48V 220V 3kw 5kw Vertical Axis Wind Turbine Generator with Inverter

US$569.00-1,699.00 1 Piece (MOQ)

Basic Info.

Model NO.

R&X -Tulip Series

Output Type

AC Three Phase

Number of Blade

Multiple-Blade

Rotating Shaft

Vertical

Stress Way of Blade

Resistance

Power

＜10kW

Phase

Three Phase

Certification

CE, RoHS

Start up Speed

2m/S

Rated Speed

12m/S

Security Wind Speed

35m/S

Gross Weight

110kg

Wind Wheel Diameter

2.0m

Hight of Blades

1.2m

Rated Rpm

60r/Min

Generator

Three Phase Permanent Magnet Generator

Rotor Blade Material

Reinforced Glass Fiber

Transport Package

Wood Box

Specification

225*123*203cm

Trademark

R&X

Origin

China

HS Code

8502310000

Production Capacity

50000/Year

Packaging & Delivery

Package Size

225.00cm * 123.00cm * 203.00cm

Package Gross Weight

110.000kg

Product Description

48V 220V 3KW 5KW Vertical Axis Wind Turbine Generator with Inverter Product Parameters

Item	800W	1KW	2KW	3KW	5KW	8KW
Rated Voltage	12V-96V
Start up speed	2m/s
Rated wind speed	11m/s
Survial Wind Speed	45m/s
Wind Wheel Diameter	0.52M	0.52M	0.52M	1.0M	1.2M	1.2M
Blades Height	1.1M	1.1M	1.1M	1.7M	2.0M	2.0M
Blades Quantity	2 PCS
Blades Material	Glass Fiber
Control System	Electromagnet
Mount Height(m)	3~12m
Generator protection grade	IP54
Work environment temperature	-25~+45ºC
Work environment humidity	≤90%
Altitude	≤4500m
Overspeed protection	Electromagnetic brake
Rated Voltage	12V-96V
Start up speed	2m/s
Rated wind speed	11m/s
Survial Wind Speed	45m/s

Power Curve
Detailed Photos
Feature 1, Low rpm, high efficiency, small size, beautiful appearance, small shake
2,It adopts humanization design, easy to install, mantain, examine and repair.
3,The blades material is made of enhanced glass fiber reinforced plastics. Better configuration design Improve the utilization rate of wind energy,
Increase annual electricity output.
4, Permanent magnet rotor alternator with special design of rotor, reduce the resistance of generator. It makes wind wheel and generator has better
fit, work more smoothly
