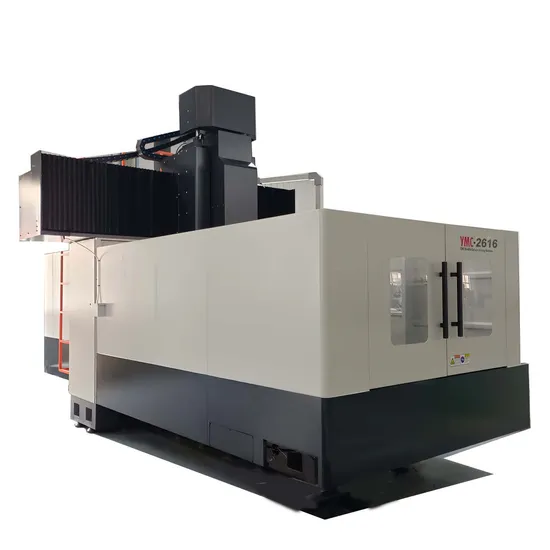

Customizable High Precision CNC Gantry Machining Tools Ymc2616

Product Description

Product Description
The bed is a rigid, one piece casting made from fine grain Meehanite cast iron with heavy ribbing to help prevent vibration and deformation during heavy cutting. Extra wide spacing of the roller guide ways provide for excellent support of the saddle, regardless of the load distribution on the table. The table is fully supported by the saddle in all positions with no overhang. The rigid box type column casting is heavily ribbed to help prevent twisting or distortion as well as helping to dampen vibration during high speed or heavy machining
Product Parameters

Item	Unit	YMC-2616
Worktable
Worktable Size	mm	2600×1480
Max.Loading on Table	KG	5000
Travel
X Axis Travel	mm	2600
Y Axis Travel	mm	1600
Z Axis Travel	mm	800
Spindle Nose to Table	mm	200-1000
Distance between Column	mm	1620
Feed System
XYZ Rapid Feed	m/min	15/15/10
Cutting Feed	m/min	7.5
ATC/Tool Magazine (For Center)
Tool Capacity		BT50/24
Max.Tool Dia./Length	mm	Φ125/300
Tool Change Method		Pneumatic
Max.Tool Weight	KG	18
Accuracy
Positioning Accuracy	mm	±0.008/300
Re-Positioning Accuracy	mm	±0.005/300
Spindle
Spindle Speed	rpm	6000
Spindle Taper		BT50
Spindle Motor	KW	15/18.5
Others
Air Requirements	kg/c	≥6
Machine Weight	KG	23000
Machine size	mm	6800*2800*3500

Products Configurations
Company Profile
Quality Control
Our Advantages
FAQ
Q1:How can l choose the most suitable machines ?
Please tell me your specications,we can choose the best model for you,or you can choose the exact model,you can also send us the products drawing,we will choose the most suitable machines for you .
Q2: What's your main products of your company?
We specialized in all kinds of machines,such as CNC Lathe Machine ,CNC Milling Machine,CNC Turning Maching,Vertical Machining Center ,Horizontal Machining Center,Lathe Machines,Turning and milling composite processing so on.
Q3: Where is our factory located? How can l visit there?
We have 5 factories located in Guangzhou, Quzhou, Ningbo, and Guangdong.You are warmly welcomed to visit us.
Q4. How do you transport it?
Provide Transportation Solution DDP/CIF/FOB/FCA
Q5: What's the Payment Terms ?
T/T ,30% initial payment when order,70% balance payment before shipment .
06: What's the MoQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
We want to know:
1.We strongly suggest you to tell us size, material of your workpiece for our evaluation if possible, better to send us workpiece drawing, so that we can recommend you most suitable model!
2.lf need ClF Price, please kindly tell us the port of destination.

---
