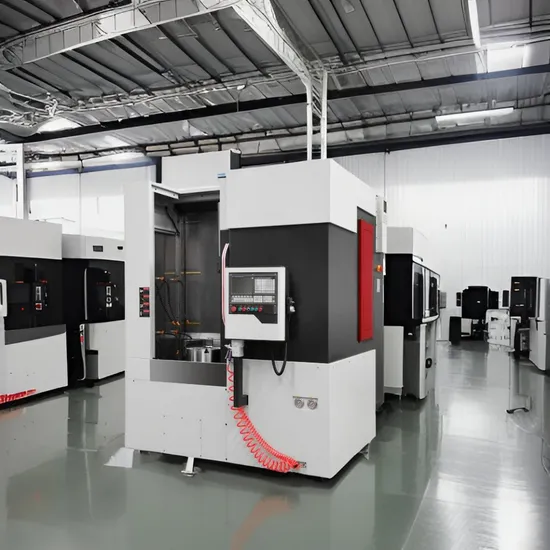

Economical CNC Vertical Lathe with CE Certificated (BL-VL350/550/650)

Product Description

-Adopt unique wall plate type + movable column type structure, X axes adopt three linear guideway design, has super
powerful cutting rigidity and high stability for accuracy
- Base and headstock adopt integrated box-type structure, adopt thick rib wall and multi-layer rib wall design, can be
subjected to static, dynamic distortion and deformation stress to ensure high rigidity and stability
- Adopt TAIWAN spindle unit and NSK NN series spindle bearings, provides superior axial and radial loads to ensure long-term heavy cutting
- Adopt ultra-heavy load ROLLER type linear guideway, high rigidity
- Adopt large diameter C3 class ball screw,after prestressing
- Adopt 8 station hydraulic-servo tool turret, fast tool changing speed,high rigidity

Item	Specification	Unit	BL-VL350	BL-VL550	BL-VL650
Capacity	Max. swing dia. over bed	mm	Φ500	Φ630	Φ800
	Max. turning dia.	mm	Φ350	Φ550	Φ650
	Max. turning height	mm	300	600	650
Spindle	Spindle speed	rpm	50~2000	100~2000	50~1500
	Spindle motor power	kw	15	18.5	22
	Spindle nose type	/	A2-8	A2-8	A2-11
	Chuck size	/	300	500	500
X/Z axes	X axes travel	mm	240	330	400
	Z axes travel	mm	450	650	700
	X/Z axes rapid moving speed	m/min	20	20	16
	X axes linear guideway width	mm	3*35(ROLLER type)	3*45(ROLLER type)
	Z axes linear guideway with	mm	2*35(ROLLER type)	2*45(ROLLER type)
	X,Z axes Ball screw O.D./pitch	mm	Φ40/10	Φ50/10
Tool turret	Tool turret type	/	Horizontal type 8 station hydraulic-servo
	Tool shank size	mm	25*25,Φ40	32*32,Φ50
Accuracy	X/Z axes positioning accuracy	mm	0.008
	X/Z axes repeat positioning accuracy	mm	0.004/0.005
	Spindle end face axial flopping	mm	0.005
	Spindle centering axes radial flopping	mm	0.005
	Cutting feed speed	mm/min	0.1~1000
	Machining accuracy	/	IT6
	Workpiece machining roundness	mm	0.010/Φ150x300
	Workpiece machining flatness	mm	0.015/Φ500
	Workpiece machining surface roughness	μm	1.6	1.6	3.2
Others	Coolant pump	w	750*2
	Hydraulic power motor	kw	2.25
	Overall size	mm	1800*1700*2700	2100*2050*2800	2400*2300*2800
	N.W.	kg	5500	7500	8000

Main parts list:

Item	Brand
Spindle bearing	JAPAN-NSK P4
Spindle unit	TAIWAN
Spindle encoder	Joint-venture
Ball screw	TAIWAN -HIWIN C3 class
Linear guideway	TAIWAN-HIWIN
Tool turret	TAIWAN-MYKUN
Chuck& cylinder	CHINA top/TAIWAN
Hydraulic parts	TAIWAN/JAPAN
Electric parts	FRANCE-SCHNEIDER

Standard Configuration:
-FANUC 0i TF(5) CNC Controller
-Hydraulic chuck
-8 station hydraulic-servo tool turret
-Automatic chip conveyor
Optional Configuration:
-GSK/SIEMENS CNC Controller
