Steel Camel Brand New Small Mini Rubber Track Crawler Backhoe Excavator

Product Description

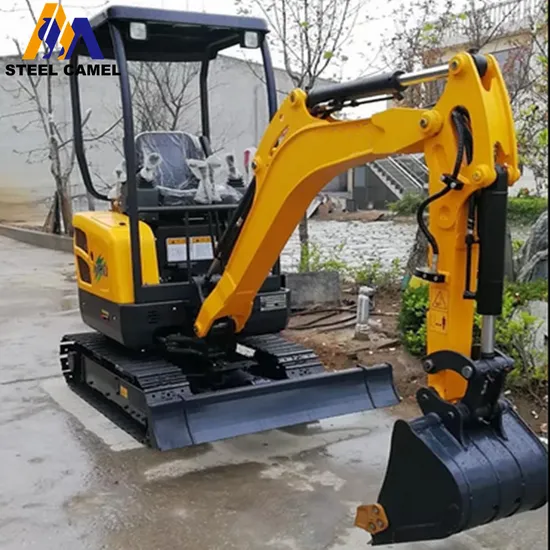

STEEL CAMEL brand new small mini rubber track crawler backhoe excavator

SC18 Mini Excavator main features: --The SC18 crawler excavator is equipped with china Laidong engine , famous brand main pump and valves, EATON brand driving motor and slewing motor, powerful and reliable

--Compact design with 1050mm width, very smart in narrow working space,

--360° slewing, big boom swing angle, left 75°, right 45°, makes it efficient and high working output.
--Hydraulic pilot servo operation system, easy and smooth operating.
--Equipped with extra pipeline for other attachments like auger, hammer, log grapple etc. Can handle with different works, multifunctional and cost saving.

--Rubber/Steel track available for different working/tracking conditions.

--Closed cabin optional offer biggest operating comfort for all weathers
Excavator technical data:

ENGINE
Make	LAIDONG
Model	3TE25
Power /Rotation speed	18.4kw(25HP)@2350rpm
Number of cylinder	3
TRACK SYSTEM
Maximum Travel speed	3.5km/h
Width of track shoe(Rubber & steel track)	230mm
Number of track shoe per side(Steel track only)	38 pcs
Number of upper roller per side	0
Number of bottom roller per side	4
PERFORMANCE PARAMETER
Standard bucket capacity	0.06m³
Swing speed	12 rpm
Max. Grade ability	35°
Max. Bucket digging force	14KN
Max. Arm digging force	10KN
Hydraulic system pressure	16Mpa
Machine weight	1800kg
MACHINE SIZE
Overall dimension (L*W*H)	3865mm*1050mm*2270mm
Axle base(Track length on ground)	1230mm
Track gauge	820mm
Min.Ground clearance	210mm
Swing radius at tail	1125mm
WORKING RANGE
Max. Digging height	3365mm
Max. Dumping height	2385mm
Max. Digging depth	2050mm
Max. Vertical digging depth	1955mm
Max. Digging radius	3860mm
Min .swing radius	1720mm
Max. Lifting height of blade	230mm
Max. Cutting depth of blade	275mm
Boom swing angle(Left)	75°
Boom swing angle(Right)	45°

Excavator attachments:
Excavator loading:
4 sets/20'GP; 8 sets/40'HQ

---
