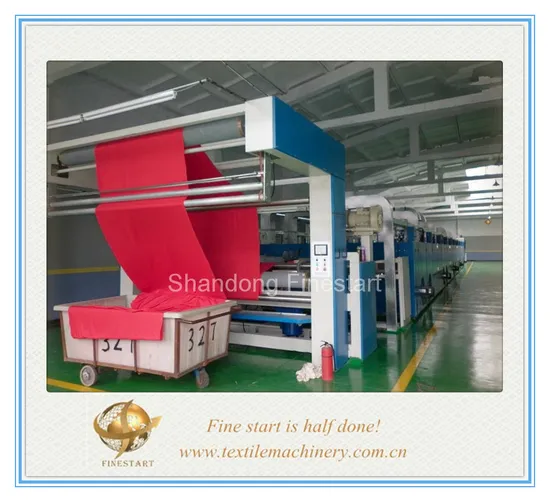

OEM Textile Finishing Machine Heat-Setting Stenter for All Fabrics

US$185,000.00-278,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
FSLD
Material
Chemical Fiber Tubular Fabric
Voltage
220V/380V
Load Capacity
>2000kg
Certification
CE, ISO9001: 2000
Warranty
1 Year
Customized
Customized
Condition
New
Weight
50tons
Delivery Date
90days
Speed
3~20m/Min
Dimension
5700X4100X3000/5700X4100X3000
Power
14.15/17.65kw
Dn
Dn50mm/Dn65mm
Oil
120/200
Transport Package
Export Standard
Specification
5700X4100X3000/5700X4900X3000
Trademark
FINESTART
Origin
China
HS Code
84518000
Production Capacity
300unit/Year

Product Description


Introduction

The Stenter Machine is used for cotton, chemical fiber and blended knitted and woven fabric open width padding auxiliaries, drying and styling process.
According to the width of the fabric, we can offer the following models:
FSLD-1600/1800/2000/2200/2400/2600/2800/3000/3200/3400/3600/3800/4000
The machine is equipped with horizontal rollers, the diameter is from 360mm to 400mm based on the machine width of 3000mm or wider.
Functions of Stenter Machines Heat setting is done by the stenter for lycra fabric, synthetic and blended fabric. Width of the fabric is controlled by the stenter. Finishing chemical apply on fabric by the stenter. Loop of the knit fabric is controlled. Moisture of the fabric is controlled by the stenter. Spirility controlled by the stenter. GSM of the fabric is controlled by stenter. Fabric is dried by the stentering process. Shrinkage property of the fabric is controlled. Curing treatment for resin, water repellent fabric is done by the stenter.
Origin China
Year of manufacture 2017

Main Matching Fabric open width fabric (70~350g/m²) made
of cotton, cotton/polyester,wool,synthtic fiber and
other blended fibers
Heat source natural gas/circulating conduction oil/steam
Stentering type hot air circulating
Holding type pin+clip
Chain type pitch 60mm,oil-free lubricated
Rail type carbon steel+polymer wearing strip
Working type horizontal return chain
Working width 1000-3600mm
Working speed 5-60m/min
Chamber Nos 2-12
Chamber width 3000mm
Insulating board thickness 150mm
Temperature of chamber 100~220ºC
Pinning & brush overfeed ratio -20%~40%
Temp.& Breadth adjustment type separately adjust on each chamber
Capacity of machine 61.5kw+22.75kw*chamber*Nos
Standard machine power supply 380V/3P/50HZ
Control power supply 220V/24V
Steam specification of steam box 3-6kg/cm²
Steam comsuption of steam box 100-150kg/h
Compressed air 0.35-0.6MPa
Total weight 14T+5.8T/chamber*Nos

Payment Terms:
Payment Conditions: 30% down payment by T/T and the balance payment should be TT or in irrevocable L/C at sight.
Delivery time:30 days from the date of receiving down payment. All payment should be received before delivery in China.

Any questions and requirments,contact us now!
