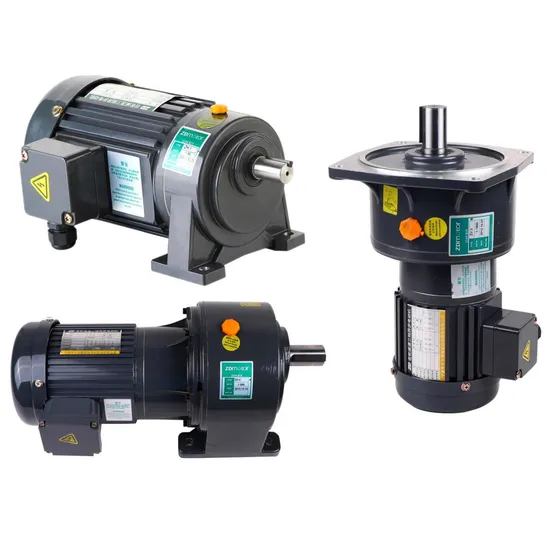

Shaft Dia 18mm 22mm 28mm 32mm 40mm 50mm 100W 200W 400W 750W,1100W 1500W 2200W 3700W Single Phase/Three Phase Electric Small AC Helical Gear Motor

US$100.00-300.00 1 Piece (MOQ)

Basic Info.

Model NO.

ZH/ZV

Power Source

AC Motor

Function

Transmission

Casing Protection

Closed Type

Number of Poles

Structure

IP54, IP20

Type

Vertical

Certification

ISO9001, CCC, CCC, CE, UL. RoHS

Brand

Power

100W~3.7kw

Reduction Ratio

3~1800K

Phase

Single Phase, Three Phase

Voltage

220V, 380V

Gear Ratio

3, 5, 10...1800

Transport Package

CTN

Specification

CCC, CE, UL. RoHS

Trademark

ZD-MOTOR

Origin

Cixi, Zhejiang, China

HS Code

8501510090

Production Capacity

30000PCS/Month

Packaging & Delivery

Package Size

50.00cm * 30.00cm * 30.00cm

Package Gross Weight

15.000kg

Product Description

Model Selection ZD Leader has a wide range of micro motor production lines in the industry, including DC Motor, AC Motor, Brushless Motor, Planetary Gear Motor, Drum Motor, Planetary Gearbox, RV Reducer and Harmonic Gearbox etc. Through technical innovation and customization, we help you create outstanding application systems and provide flexible solutions for various industrial automation situations.
• Model Selection Our professional sales representive and technical team will choose the right model and transmission solutions for your usage depend on your specific parameters.
• Drawing Request If you need more product parameters, catalogues, CAD or 3D drawings, please contact us.
• On Your Need We can modify standard products or customize them to meet your specific needs. Product Parameters Helical Gear Motor

Mount Type	Horizontal / Vertical
MOTOR TYPE	Induction Motor
OUTPUT POWER	100W / 200W / 400W / 750W / 1500W / 2200W / 3700W (Can Be Customized)
OUTPUT SHAFT	18mm / 22mm / 28mm / 32mm / 40mm / 50mm; Round Shaft, D-Cut Shaft, Key-Way Shaft (Can Be Customized)
Voltage type	Single phase 110V50/60Hz, 220V/50/60Hz; Three phase 220-240/380-415V, 50/60Hz
Accessories	Electric Brake / Fan / Terminal Box
Gear Ratio	3K-1800K

Type Of Helical Gear Motor
