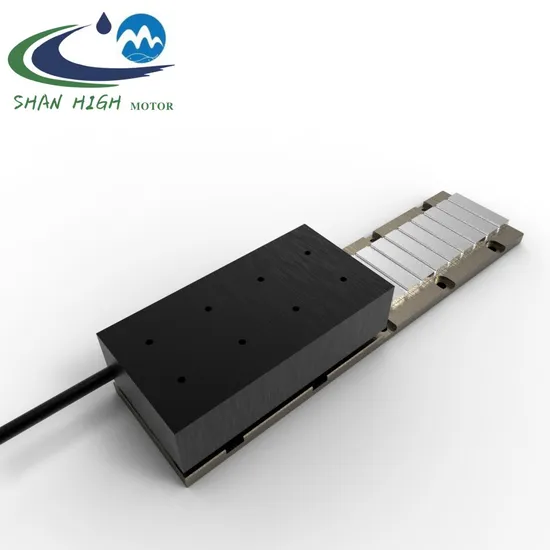

| Specifications |
| Parameter | Unit | LSHMF010-DP96 | LSHMF010-DP176 |
| Performance Specifications |
| Continuous Force: | N | 79 | 162.2 |
| Peak Force: | N | 309.2 | 635.4 |
| Electrical Specifications |
| BEMF Constant(line-line, peak): | V/(m/s) | 26.9 | 27.6 |
| Continuous Current: | Arms | 2.4 | 4.8 |
| Peak Current, Stall: | Arms | 9.4 | 18.8 |
| Force Constant: | N/Arms | 32.9 | 33.8 |
| Motor Constant: | N/Sqrt(W) | 14.4 | 20.3 |
| Resistance, 25ºC (line-line): | Ω | 3.5 | 1.84 |
| Inductance, (line-line): | Mh | 16.5 | 8.2 |
| Thermal Resistance: | ºC/W | 2 | 0.909 |
| Masimum Bus Voltage: | VDC | 600 | 600 |
| Machanical Specifications |
| Coil Weight: | kg | 0.6 | 1.1 |
| Coil Length: | mm | 96 | 176 |
| Magnet Track Weight: | kg/m | 3.3 | 3.3 |
| Magnet Pole Pitch (NN): | mm | 20 | 20 |
| Notes: Perfomance is dependent upon heat sink configuration, system cooling conditions, and ambient temperature. Valus shown @ 100ºC rise above a 25ºC ambient temperature, with motor mounted to the specified aluminum heat sink. Peak force assumes correct rms current us. Force constant and motor constant specified at stall. All performance and electrical specifications ±10% |
